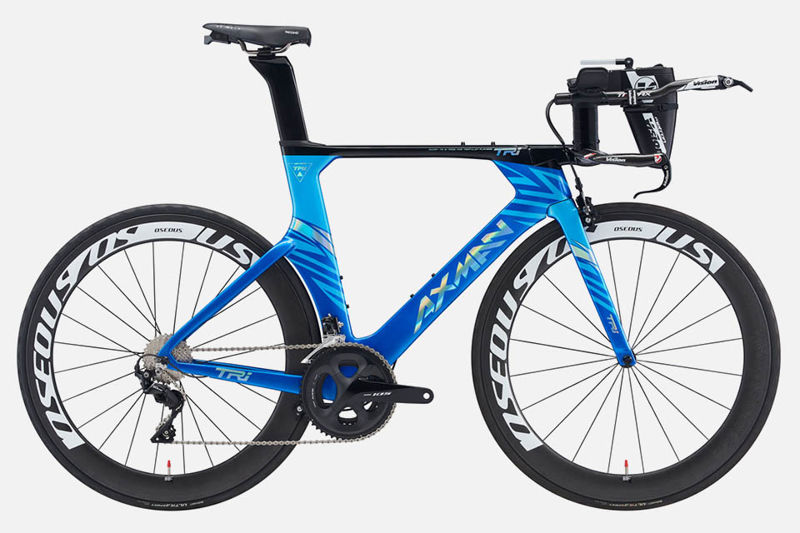

2020 Axman TRI R1 geometry
Full frame geometry for the 2020 Axman TRI R1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 495.2 | 384.7 | 78 | 73 | 50 | 490 | 506.3 | 764.2 | 70 | 400 | 953.5 |
| S | 514.4 | 400.7 | 78 | 73 | 70 | 510 | 525.8 | 783.4 | 70 | 400 | 975.3 |
| M | 535.5 | 416.6 | 78 | 73 | 90 | 530 | 545.4 | 802.5 | 70 | 400 | 997.1 |
| L | 552.6 | 432.5 | 78 | 73 | 110 | 550 | 565 | 821.6 | 70 | 400 | 1018 |
All measurements in millimetres unless marked (°) for angles.
