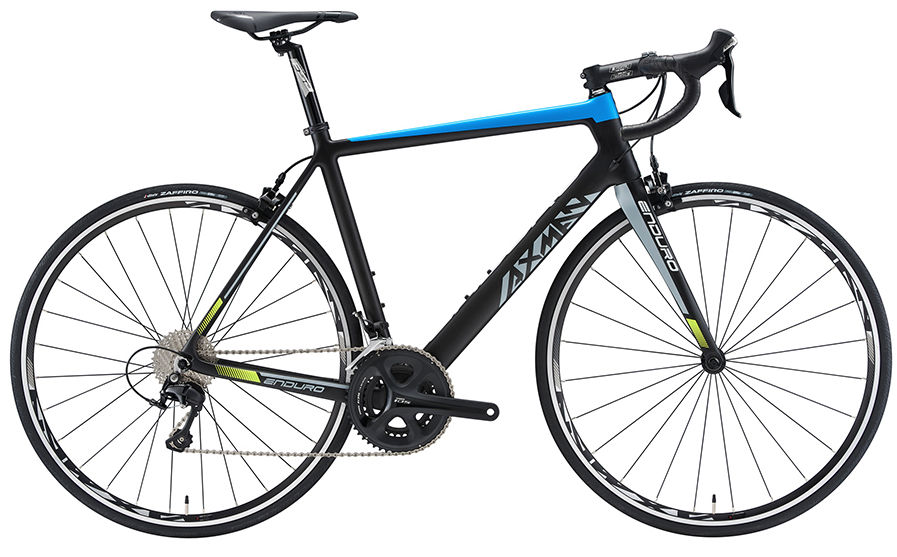

2017 Axman Enduro C geometry
Full frame geometry for the 2017 Axman Enduro C, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 45 | 512 | 373 | 75 | 71 | 110 | 510 | 450 | 723 | 73 | 583 | 410 | 982 |
| 48 | 523 | 375 | 74.5 | 71.5 | 120 | 520 | 480 | 739 | 73 | 585 | 410 | 984 |
| 51 | 545 | 379 | 74 | 72.5 | 140 | 535 | 510 | 764 | 73 | 585 | 412 | 986 |
| 54 | 571 | 381 | 73.5 | 72.5 | 170 | 550 | 540 | 792 | 70 | 595 | 412 | 997 |
All measurements in millimetres unless marked (°) for angles.
