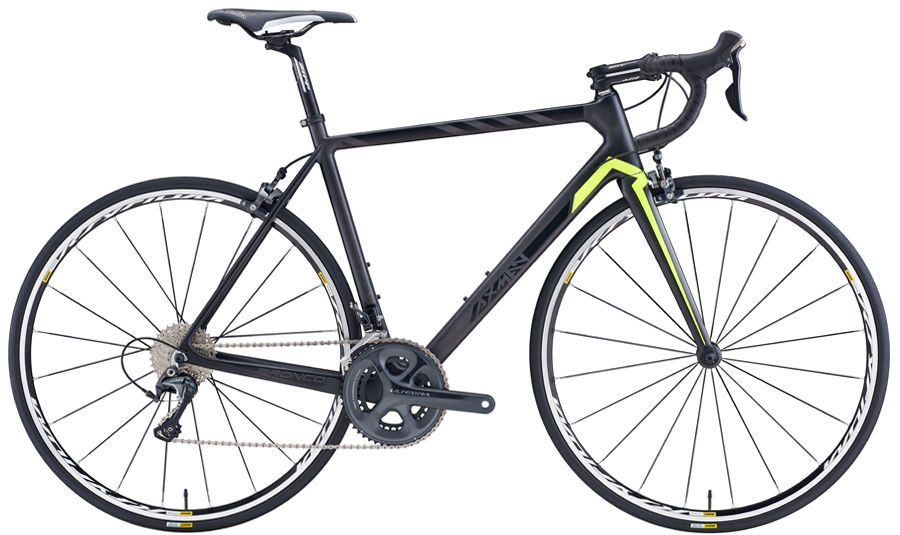

2016 Axman Broncos SL geometry
Full frame geometry for the 2016 Axman Broncos SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 45 | 493 | 384 | 75 | 72 | 90 | 516 | 450 | 711 | 70 | 571 | 405 | 966 |
| 48 | 514 | 389 | 75 | 72.5 | 110 | 527 | 580 | 738 | 70 | 578 | 405 | 973 |
| 51 | 535 | 393 | 75 | 73 | 130 | 536 | 510 | 764 | 70 | 584 | 405 | 979 |
| 54 | 557 | 397 | 73.5 | 73 | 155 | 562 | 540 | 786 | 68 | 596 | 405 | 991 |
| 57 | 590 | 401 | 73 | 73 | 190 | 581 | 570 | 812 | 68 | 610 | 405 | 1005 |
| 60 | 619 | 405 | 73 | 73 | 220 | 594 | 600 | 840 | 68 | 622 | 405 | 1018 |
All measurements in millimetres unless marked (°) for angles.
