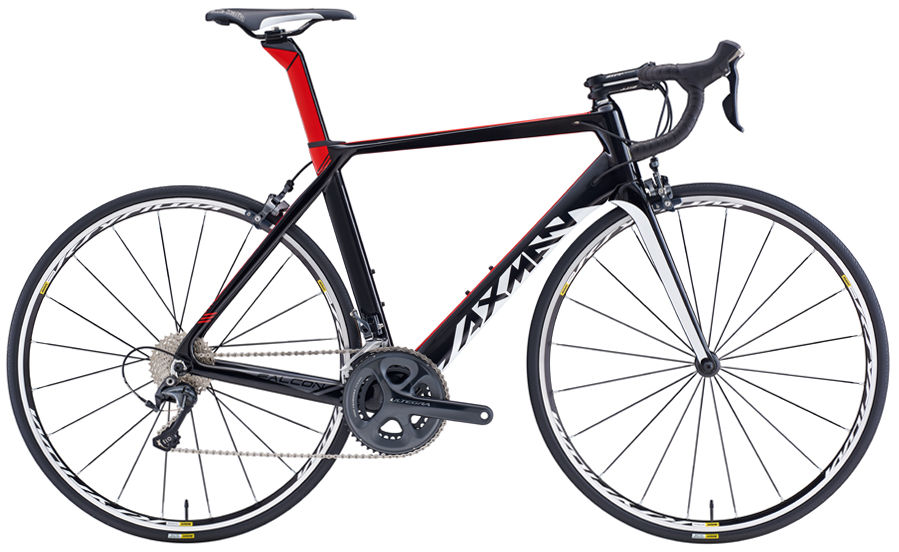

2016 Axman Falcon S geometry
Full frame geometry for the 2016 Axman Falcon S, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 499 | 373 | 75 | 71 | 100 | 511 | 459 | 733 | 70 | 570 | 405 | 965 |
| 48 | 516 | 379 | 74.5 | 72 | 115 | 522 | 459 | 743 | 70 | 573 | 405 | 968 |
| 50 | 537 | 386 | 74 | 72.5 | 135 | 540 | 480 | 763 | 70 | 582 | 405 | 977 |
| 52 | 551 | 392 | 73.5 | 73 | 150 | 555 | 498 | 781 | 68 | 589 | 405 | 984 |
| 54 | 570 | 399 | 73 | 73 | 170 | 573 | 520 | 800 | 68 | 601 | 405 | 996 |
| 56 | 584 | 406 | 73 | 73 | 185 | 585 | 535 | 814 | 68 | 613 | 405 | 1008 |
All measurements in millimetres unless marked (°) for angles.
