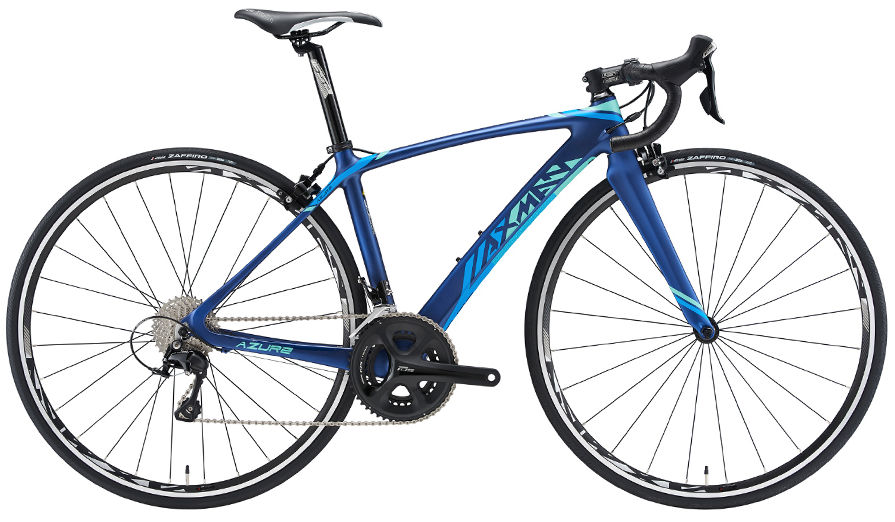

2017 Axman Azure Q geometry
Full frame geometry for the 2017 Axman Azure Q, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 43 | 498 | 372 | 74.5 | 71.5 | 100 | 510 | 430 | 713 | 68 | 567 | 409 | 966 |
| 45 | 520 | 381 | 74 | 72.5 | 115 | 530 | 450 | 731 | 68 | 575 | 409 | 974 |
All measurements in millimetres unless marked (°) for angles.
