2017 Axman · MH

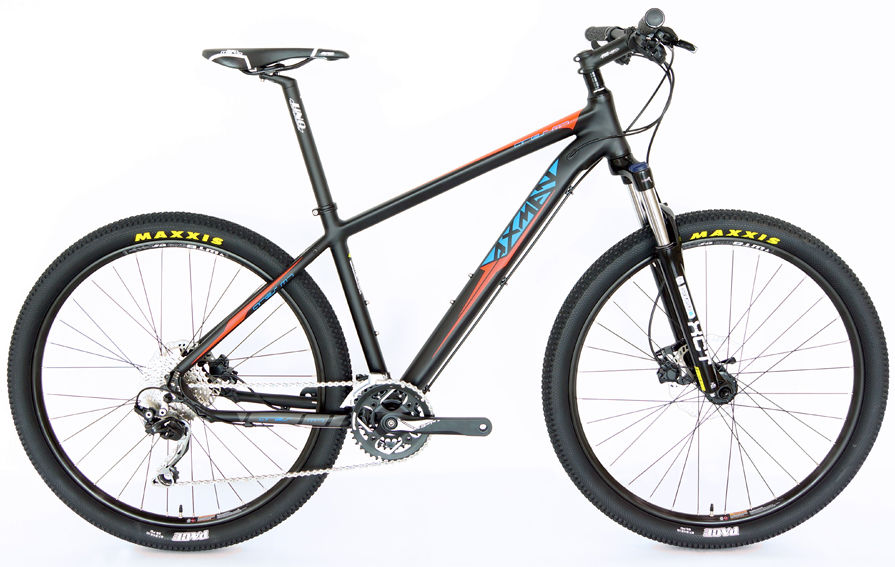

2017 Axman Ares M geometry
Full frame geometry for the 2017 Axman Ares M, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 587 | 391 | 73 | 70 | 95 | 570 | 380 | 785 | 45 | 637 | 420 | 1053 |
| 17 | 592 | 409 | 73 | 70 | 100 | 590 | 430 | 813 | 45 | 663 | 420 | 1079 |
| 19 | 606 | 425 | 73 | 70 | 115 | 610 | 480 | 846 | 45 | 684 | 420 | 1100 |
| 21 | 616 | 441 | 73 | 70 | 126 | 630 | 530 | 878 | 45 | 704 | 420 | 1120 |
All measurements in millimetres unless marked (°) for angles.
