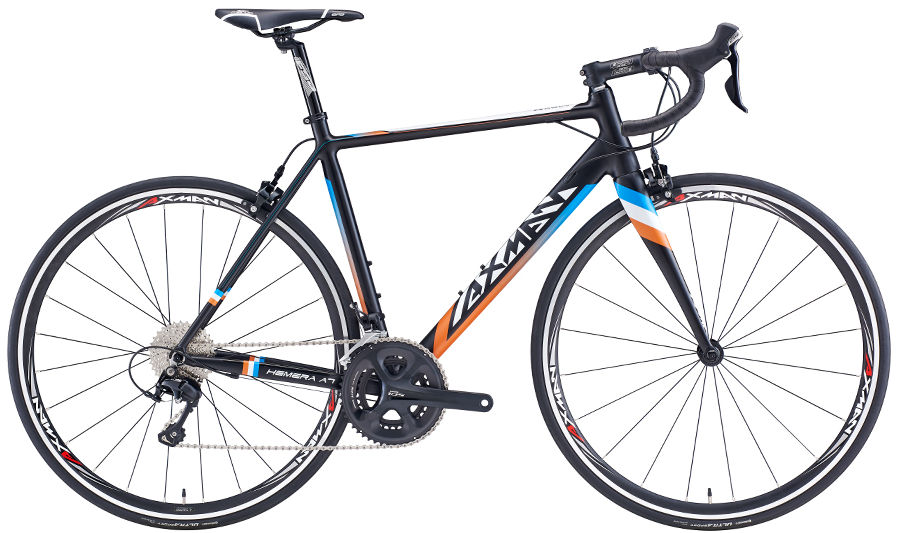

2016 Axman Hemera A7 geometry
Full frame geometry for the 2016 Axman Hemera A7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 517 | 376 | 75 | 71.5 | 120 | 510 | 580 | 728 | 70 | 577 | 405 | 972 |
| 45 | 518 | 371 | 75.5 | 71.5 | 120 | 505 | 450 | 715 | 70 | 572 | 405 | 967 |
| 51 | 539 | 381 | 75 | 72 | 140 | 525 | 510 | 753 | 70 | 584 | 405 | 979 |
| 54 | 561 | 389 | 74.5 | 73 | 160 | 545 | 540 | 778 | 70 | 591 | 405 | 986 |
All measurements in millimetres unless marked (°) for angles.
