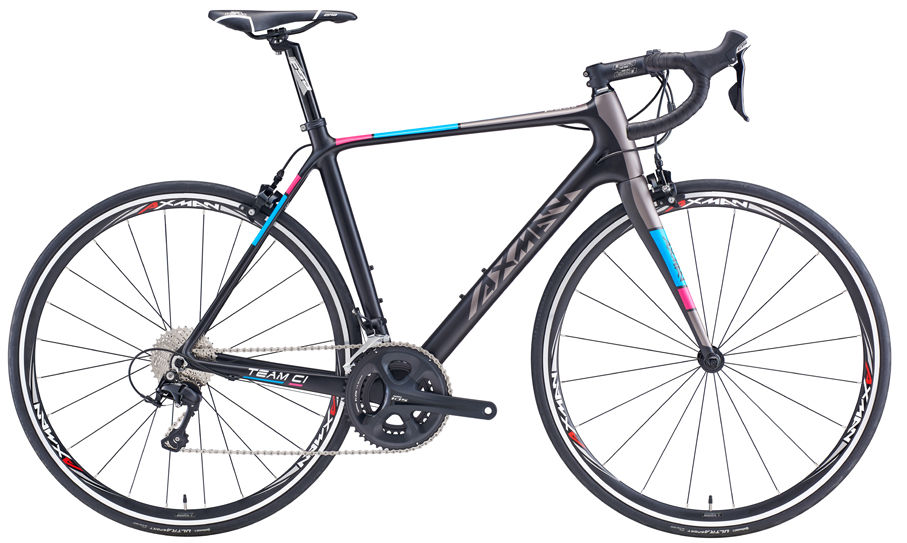

2016 Axman Team C1 geometry
Full frame geometry for the 2016 Axman Team C1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 45 | 503 | 389 | 76 | 72 | 100 | 515 | 450 | 711 | 72 | 581 | 410 | 980 |
| 48 | 513 | 388 | 75 | 72 | 110 | 525 | 480 | 727 | 72 | 583 | 410 | 982 |
| 51 | 532 | 387 | 74 | 72.6 | 130 | 540 | 510 | 746 | 70 | 582 | 410 | 982 |
| 54 | 564 | 386 | 73.3 | 73 | 166 | 555 | 540 | 784 | 67 | 590 | 410 | 991 |
| 57 | 598 | 387 | 73 | 73 | 200 | 570 | 570 | 814 | 97 | 610 | 410 | 1001 |
| 60 | 617 | 400 | 73 | 73 | 220 | 590 | 600 | 836 | 98 | 631 | 410 | 1021 |
All measurements in millimetres unless marked (°) for angles.
