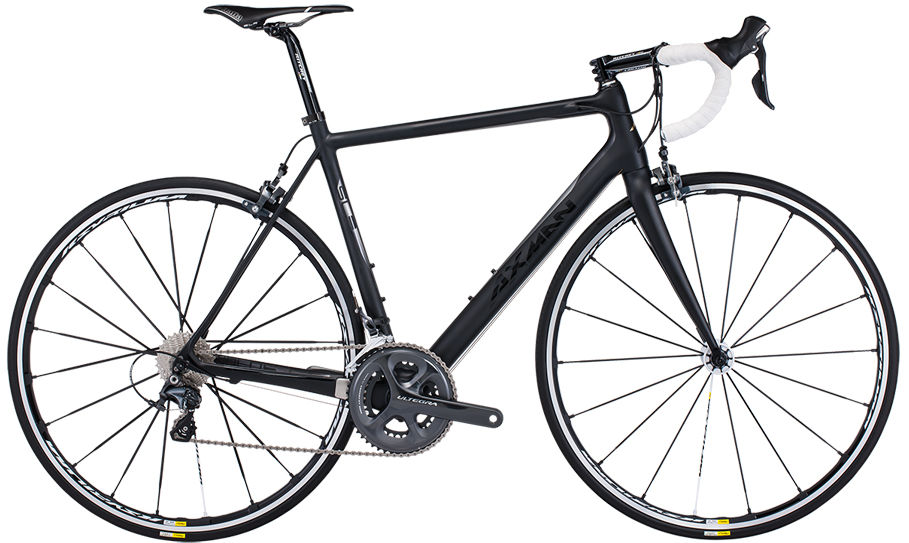

2015 Axman Aiolos geometry
Full frame geometry for the 2015 Axman Aiolos, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 45 | 496 | 392 | 75 | 72.5 | 90 | 525 | 450 | 708 | 73 | 574 | 405 | 968 |
| 48 | 496 | 392 | 75 | 72.5 | 90 | 525 | 480 | 723 | 73 | 574 | 405 | 968 |
| 51 | 524 | 390 | 75 | 73 | 120 | 530 | 510 | 754 | 70 | 576 | 405 | 971 |
| 54 | 557 | 391 | 73.5 | 73 | 155 | 556 | 540 | 782 | 70 | 586 | 405 | 981 |
| 57 | 588 | 390 | 73 | 73 | 190 | 570 | 570 | 815 | 68 | 598 | 410 | 998 |
| 60 | 617 | 401 | 73 | 73 | 220 | 590 | 600 | 840 | 68 | 617 | 410 | 1018 |
All measurements in millimetres unless marked (°) for angles.
