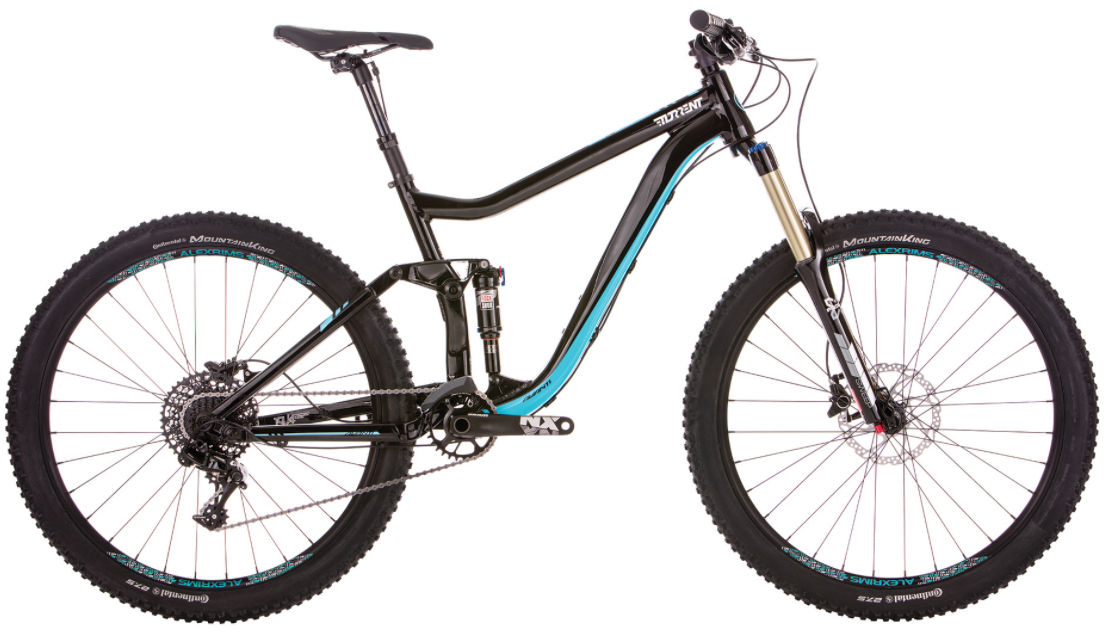

2017 Avanti Torrent S geometry
Full frame geometry for the 2017 Avanti Torrent S, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 576 | 394 | 73.5 | 66.5 | 100 | 565 | 380 | 690 | 7 | 690 | 438 | 1128 | 44 |
| L | 588 | 446 | 73.5 | 66.5 | 113 | 620 | 480 | 763 | 7 | 746 | 438 | 1184 | 44 |
| M | 588 | 421 | 73.5 | 66.5 | 113 | 595 | 430 | 728 | 7 | 722 | 438 | 1160 | 44 |
| XL | 599 | 473 | 73.5 | 66.5 | 125 | 650 | 530 | 796 | 7 | 778 | 438 | 1216 | 44 |
All measurements in millimetres unless marked (°) for angles.
