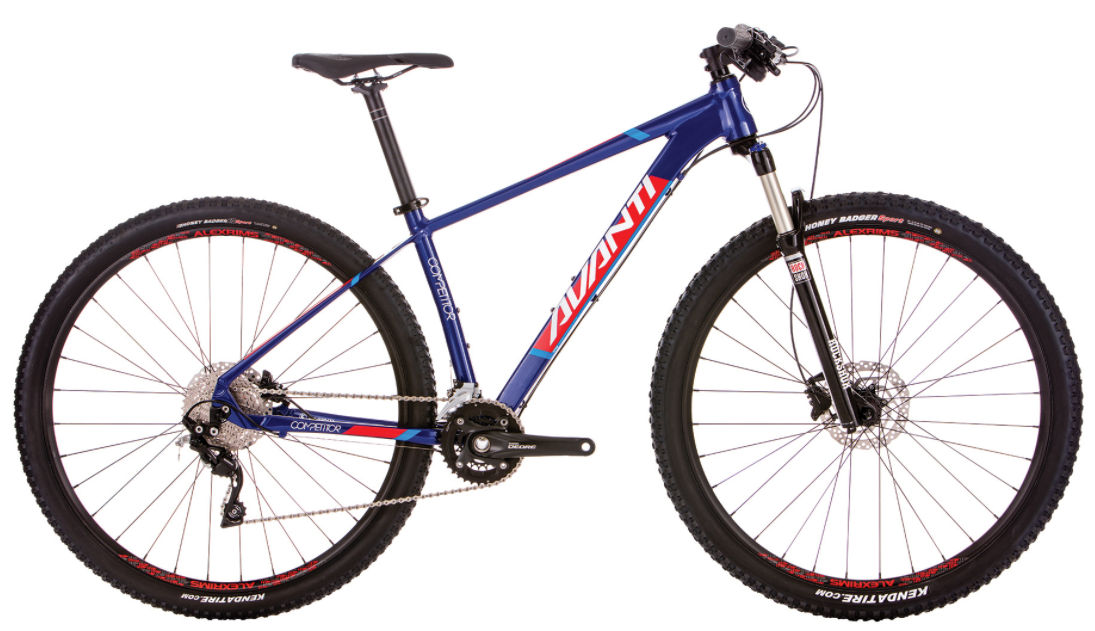

2017 Avanti Competitor 9 geometry
Full frame geometry for the 2017 Avanti Competitor 9, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ML | 617 | 417 | 73.5 | 71.5 | 100 | 600 | 420 | 761 | 55 | 655 | 445 | 1094 | 46 | 75 |
| L | 619 | 431 | 73 | 72 | 100 | 620 | 470 | 785 | 55 | 664 | 445 | 1103 | 46 | 72 |
| XL | 628 | 448 | 73 | 72 | 110 | 640 | 520 | 818 | 55 | 684 | 445 | 1123 | 46 | 72 |
All measurements in millimetres unless marked (°) for angles.
