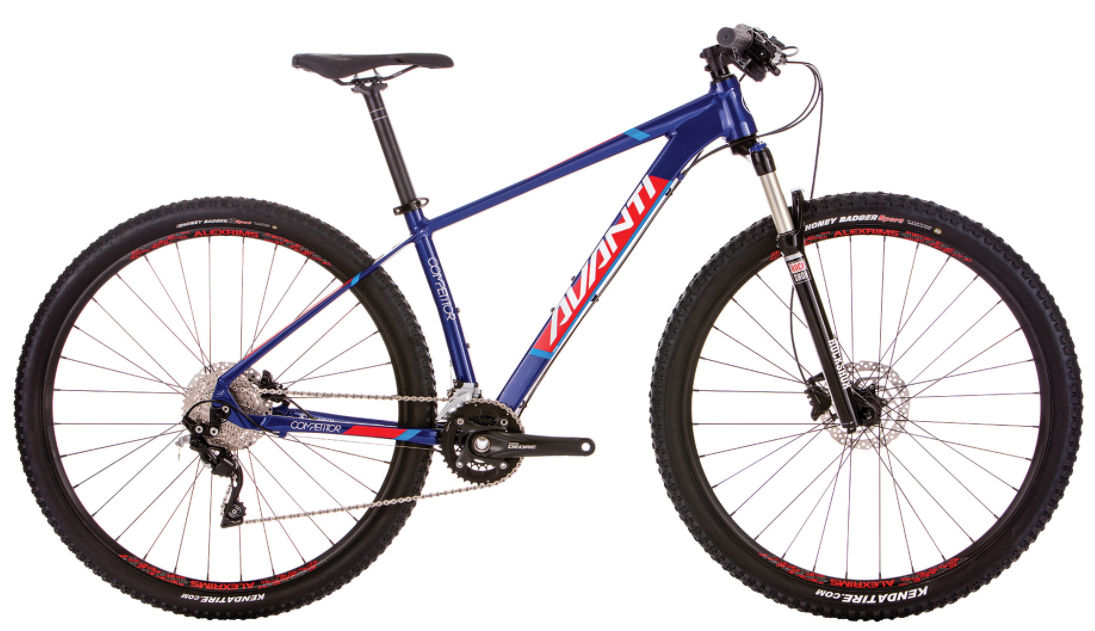

2017 Avanti Competitor 7 geometry
Full frame geometry for the 2017 Avanti Competitor 7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 578 | 389 | 74 | 70 | 100 | 555 | 380 | 723 | 39 | 628 | 430 | 1055 | 42 | 84 |
| M | 589 | 405 | 73 | 70.5 | 110 | 585 | 430 | 758 | 39 | 643 | 430 | 1070 | 42 | 81 |
| L | 599 | 422 | 73 | 70.5 | 120 | 605 | 480 | 790 | 39 | 664 | 430 | 1091 | 42 | 81 |
All measurements in millimetres unless marked (°) for angles.
