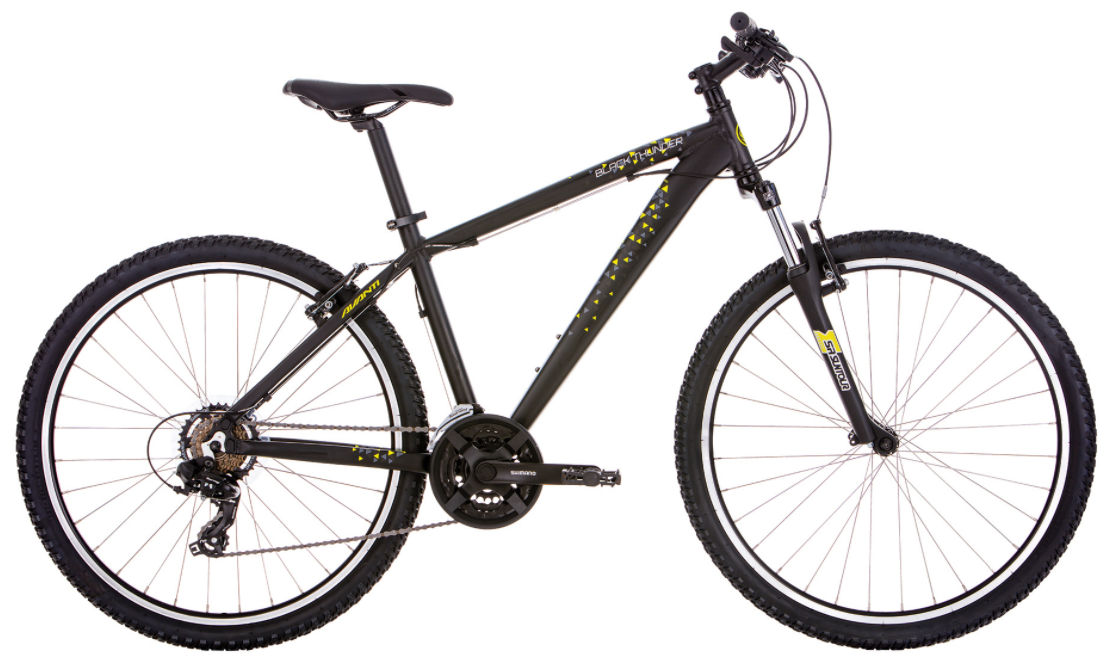

2017 Avanti Black Thunder 7 geometry
Full frame geometry for the 2017 Avanti Black Thunder 7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 553 | 382 | 75 | 69 | 90 | 530 | 330 | 690 | 50 | 623 | 440 | 1058 | 42 | 91 |
| S | 555 | 391 | 74 | 69.5 | 90 | 550 | 380 | 716 | 50 | 627 | 440 | 1062 | 42 | 88 |
| M | 569 | 391 | 73 | 69.5 | 105 | 565 | 430 | 748 | 50 | 632 | 440 | 1067 | 42 | 88 |
| L | 578 | 408 | 73 | 69.5 | 115 | 585 | 480 | 779 | 50 | 653 | 440 | 1088 | 42 | 88 |
| XL | 594 | 418 | 73 | 70 | 130 | 600 | 530 | 814 | 50 | 663 | 440 | 1099 | 42 | 84 |
All measurements in millimetres unless marked (°) for angles.
