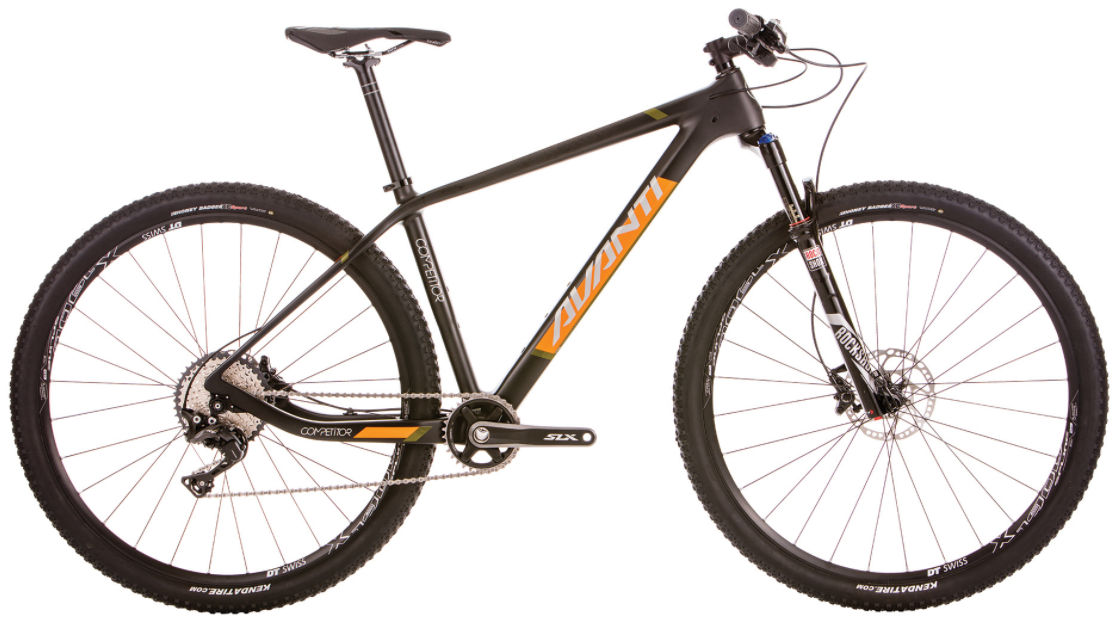

2017 Avanti Competitor C MKII geometry
Full frame geometry for the 2017 Avanti Competitor C MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 584 | 382 | 73 | 69 | 100 | 560 | 390 | 786 | 50 | 635 | 425 | 1055 | 44 |
| M | 593 | 399 | 73 | 69 | 110 | 580 | 440 | 817 | 50 | 655 | 425 | 1075 | 44 |
| ML | 614 | 418 | 73.5 | 69.5 | 100 | 600 | 440 | 833 | 63 | 679 | 438 | 1109 | 51 |
| L | 624 | 440 | 73.5 | 69.5 | 110 | 625 | 490 | 863 | 63 | 705 | 438 | 1132 | 51 |
All measurements in millimetres unless marked (°) for angles.
