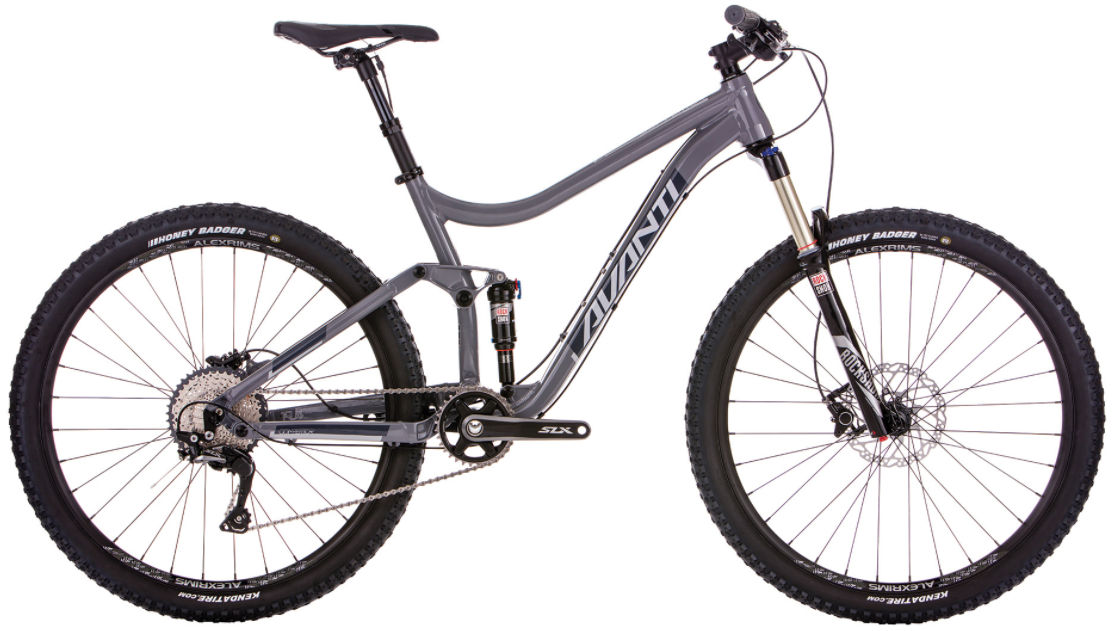

2017 Avanti Competitor S geometry
Full frame geometry for the 2017 Avanti Competitor S, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 561 | 404 | 73.5 | 67.5 | 100 | 570 | 390 | 686 | 15 | 678 | 428 | 1106 | 44 | 96 |
| ML | 571 | 426 | 73.5 | 67.5 | 110 | 595 | 430 | 708 | 15 | 704 | 428 | 1132 | 44 | 96 |
| L | 580 | 443 | 73.5 | 67.5 | 120 | 615 | 480 | 741 | 15 | 725 | 428 | 1153 | 44 | 96 |
| XL | 589 | 461 | 73.5 | 67.5 | 130 | 635 | 530 | 776 | 15 | 746 | 428 | 1174 | 44 | 96 |
All measurements in millimetres unless marked (°) for angles.
