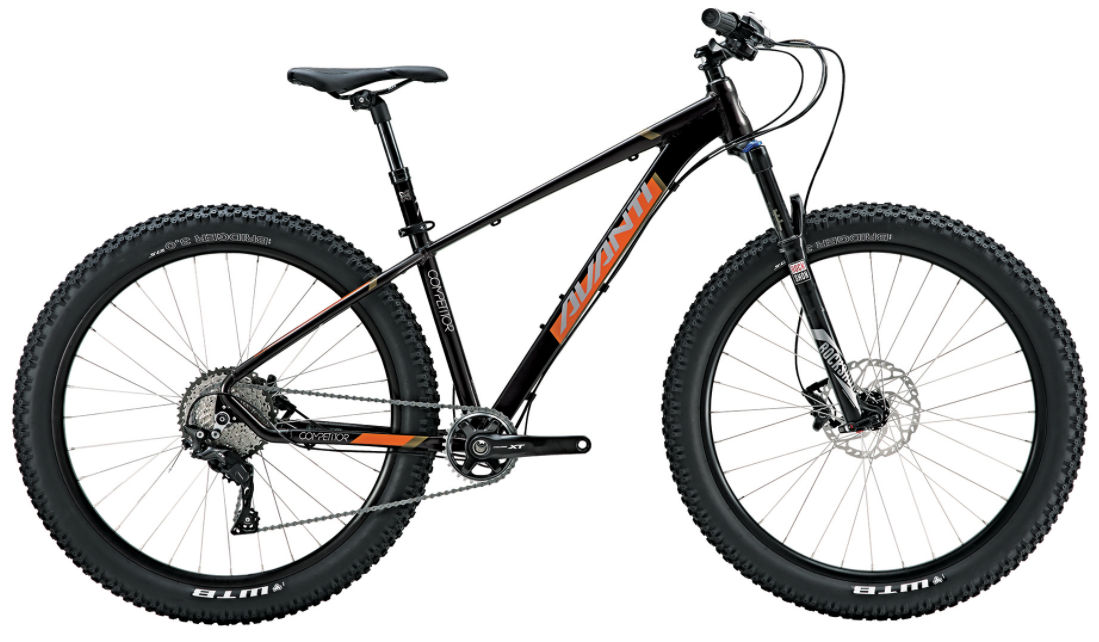

2017 Avanti Competitor Plus geometry
Full frame geometry for the 2017 Avanti Competitor Plus, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 613 | 393 | 73.5 | 69 | 90 | 575 | 370 | 800 | 55 | 665 | 440 | 1099 | 51 |
| L | 623 | 441 | 73.5 | 69 | 100 | 625 | 450 | 846 | 55 | 716 | 440 | 1150 | 51 |
| M | 623 | 416 | 73.5 | 69 | 100 | 600 | 400 | 820 | 55 | 691 | 440 | 1125 | 51 |
| XL | 632 | 448 | 73.5 | 69 | 110 | 635 | 500 | 877 | 55 | 726 | 440 | 1161 | 51 |
All measurements in millimetres unless marked (°) for angles.
