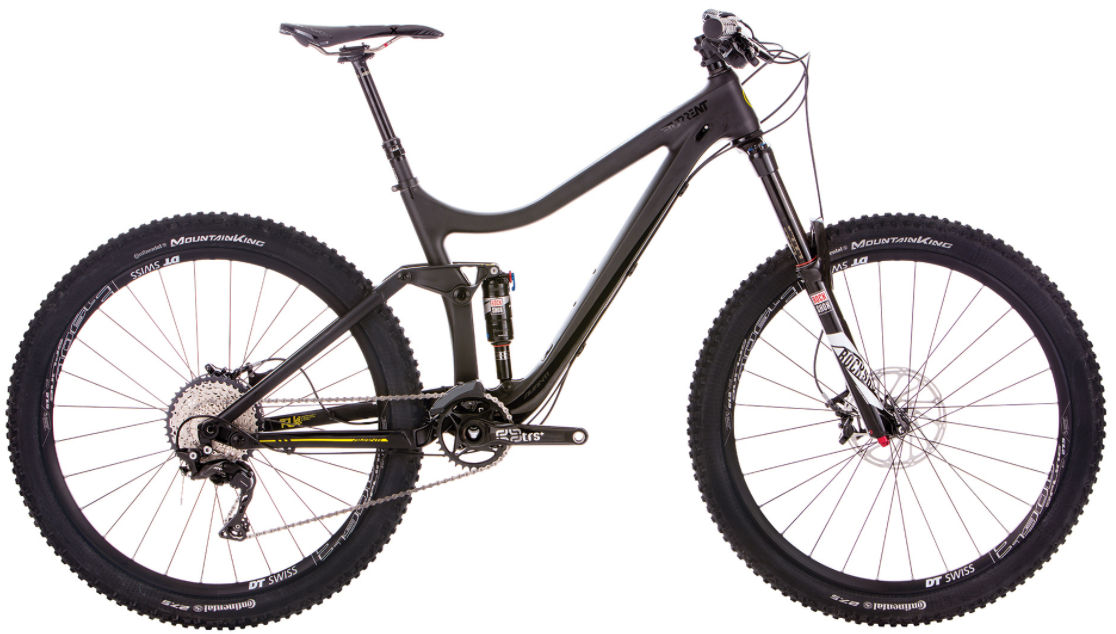

2017 Avanti Torrent CS geometry
Full frame geometry for the 2017 Avanti Torrent CS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 576 | 389 | 73 | 66.5 | 100 | 565 | 380 | 686 | 7 | 684 | 438 | 1122 | 44 | 103 |
| M | 585 | 416 | 73 | 66.5 | 110 | 595 | 430 | 711 | 7 | 716 | 438 | 1153 | 44 | 103 |
| L | 599 | 437 | 73 | 66.5 | 125 | 620 | 480 | 747 | 7 | 742 | 438 | 1180 | 44 | 103 |
All measurements in millimetres unless marked (°) for angles.
