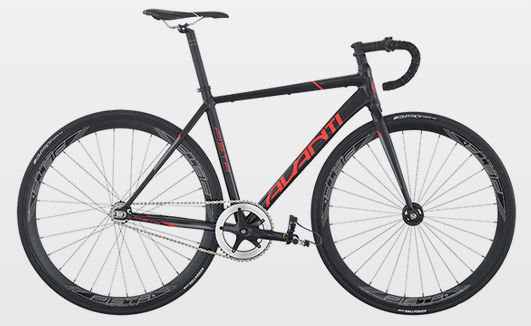

2014 Avanti Pista geometry
Full frame geometry for the 2014 Avanti Pista, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51.5 | 501 | 380 | 75 | 73.5 | 110 | 515 | 460 | 731 | 50 | 552 | 396 | 943 | 35 | 64 |
| 54 | 532 | 392 | 74.5 | 74 | 130 | 540 | 485 | 756 | 50 | 569 | 396 | 960 | 35 | 61 |
| 57 | 541 | 415 | 74 | 74 | 150 | 570 | 505 | 769 | 50 | 594 | 396 | 985 | 35 | 61 |
| 59 | 565 | 428 | 74 | 74 | 175 | 590 | 525 | 788 | 50 | 614 | 396 | 1005 | 35 | 61 |
All measurements in millimetres unless marked (°) for angles.
