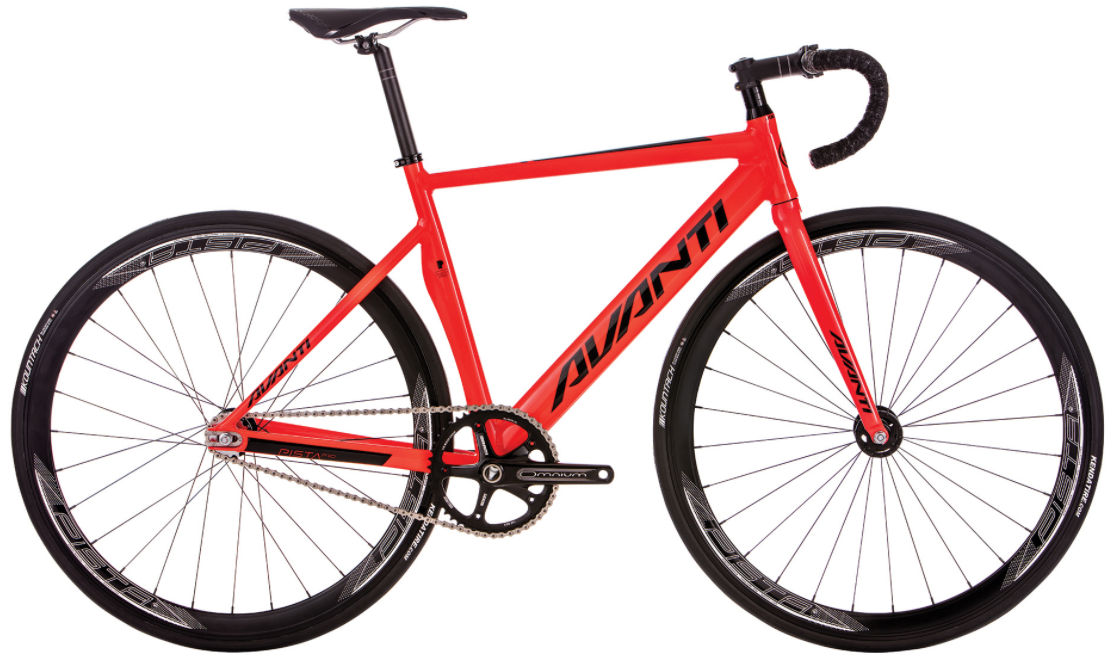

2017 Avanti Pista Pro geometry
Full frame geometry for the 2017 Avanti Pista Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 501 | 389 | 75 | 73.5 | 110 | 515 | 460 | 767 | 50 | 562 | 396 | 952 | 35 | 64 |
| M | 522 | 404 | 74.5 | 74 | 130 | 540 | 485 | 791 | 50 | 578 | 396 | 969 | 35 | 61 |
| L | 541 | 424 | 74 | 74 | 150 | 570 | 505 | 811 | 50 | 604 | 396 | 985 | 35 | 61 |
| XL | 565 | 437 | 74 | 74 | 175 | 590 | 525 | 834 | 50 | 624 | 396 | 1014 | 35 | 61 |
All measurements in millimetres unless marked (°) for angles.
