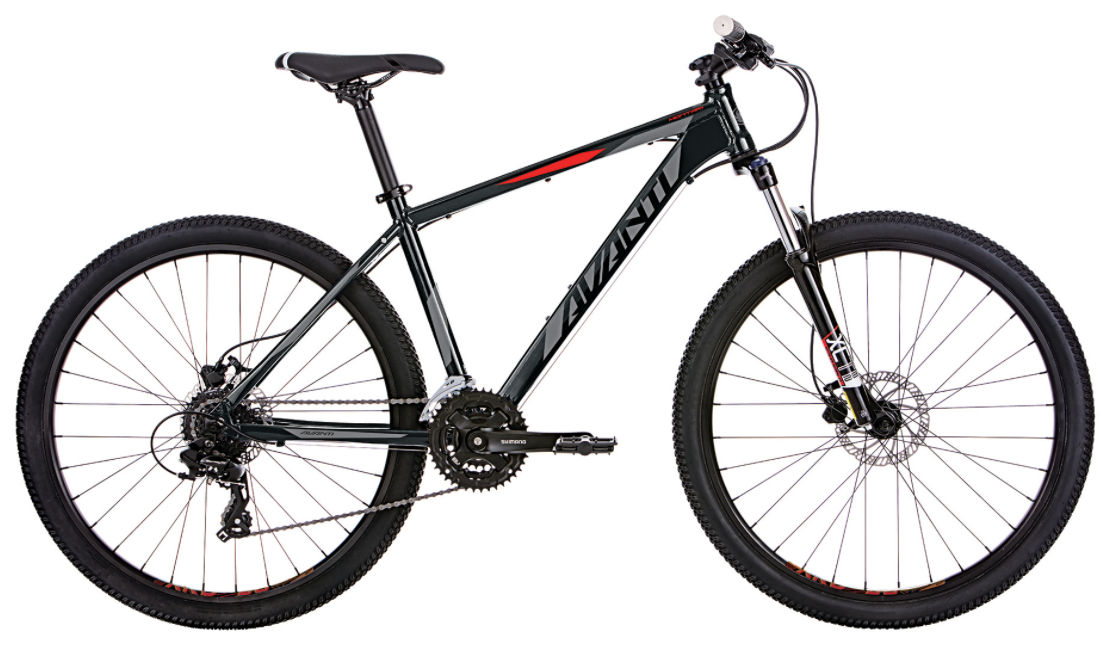

2017 Avanti Montari geometry
Full frame geometry for the 2017 Avanti Montari, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 570 | 377 | 75 | 69 | 95 | 530 | 330 | 691 | 39 | 623 | 430 | 1050 | 42 | 91 |
| S | 574 | 385 | 74 | 70 | 95 | 550 | 380 | 719 | 39 | 629 | 430 | 1056 | 42 | 88 |
| M | 586 | 406 | 73 | 69.5 | 110 | 585 | 430 | 752 | 39 | 654 | 430 | 1081 | 42 | 88 |
| ML | 617 | 417 | 73.5 | 71.5 | 100 | 600 | 420 | 758 | 55 | 655 | 450 | 1099 | 46 | 76 |
| L | 619 | 431 | 73 | 72 | 100 | 620 | 470 | 788 | 55 | 664 | 450 | 1108 | 46 | 72 |
| XL | 628 | 448 | 73 | 72 | 110 | 640 | 520 | 822 | 55 | 684 | 450 | 1128 | 46 | 72 |
All measurements in millimetres unless marked (°) for angles.
