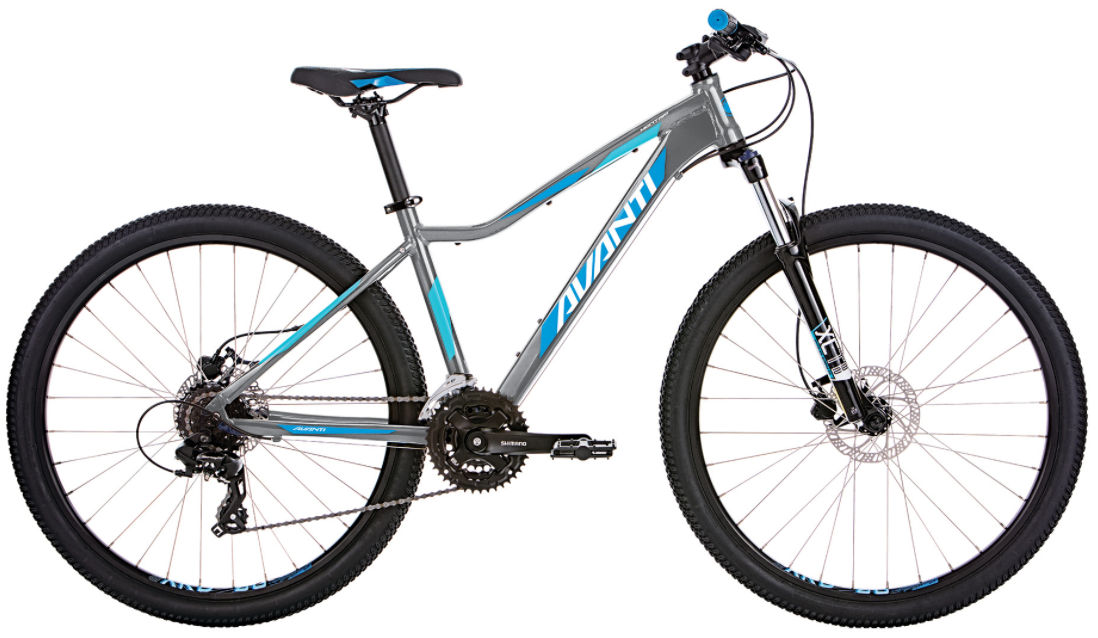

2017 Avanti Montari Womens geometry
Full frame geometry for the 2017 Avanti Montari Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 584 | 362 | 75 | 69 | 105 | 518 | 350 | 675 | 44 | 612 | 430 | 1038 | 42 | 91 |
| S | 593 | 375 | 74 | 70 | 110 | 545 | 400 | 701 | 44 | 624 | 430 | 1050 | 42 | 88 |
| M | 602 | 402 | 74 | 70 | 120 | 575 | 450 | 732 | 44 | 654 | 430 | 1081 | 42 | 88 |
All measurements in millimetres unless marked (°) for angles.
