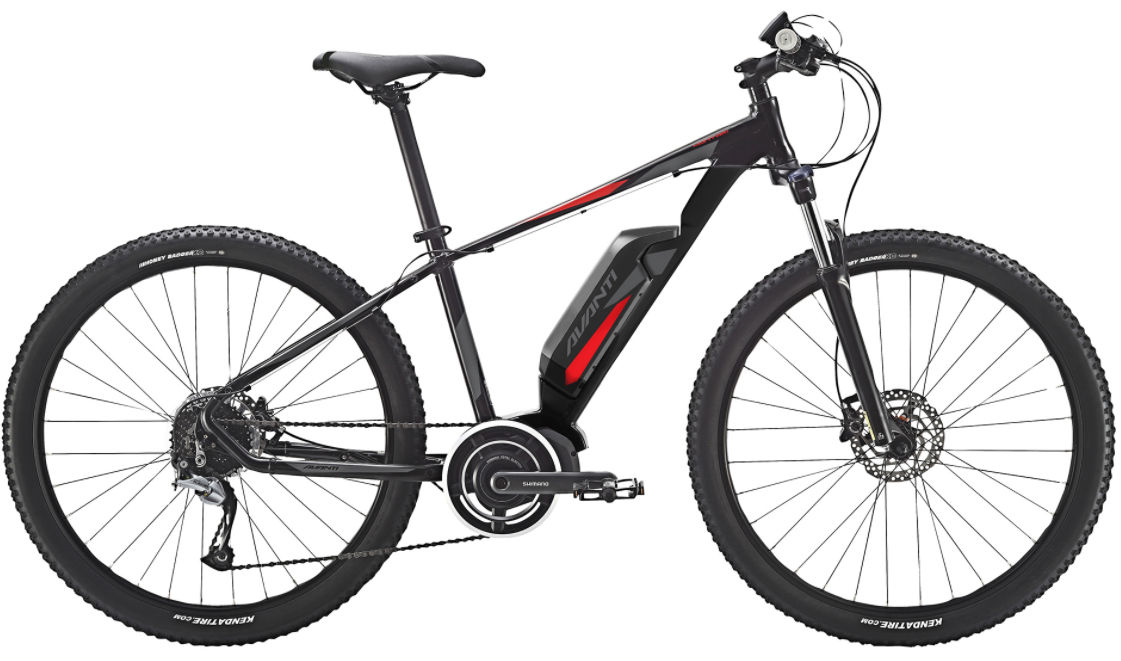

2017 Avanti Montari Electric geometry
Full frame geometry for the 2017 Avanti Montari Electric, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 611 | 420 | 73.5 | 71.5 | 100 | 601 | 420 | 734 | 653 | 480 | 1127 | 42 |
| S | 611 | 405 | 73.5 | 71.5 | 100 | 586 | 390 | 718 | 638 | 480 | 1112 | 42 |
| L | 613 | 433 | 73 | 72 | 100 | 621 | 470 | 764 | 661 | 480 | 1135 | 42 |
| XL | 622 | 450 | 73 | 71 | 110 | 641 | 520 | 799 | 681 | 480 | 1156 | 42 |
All measurements in millimetres unless marked (°) for angles.
