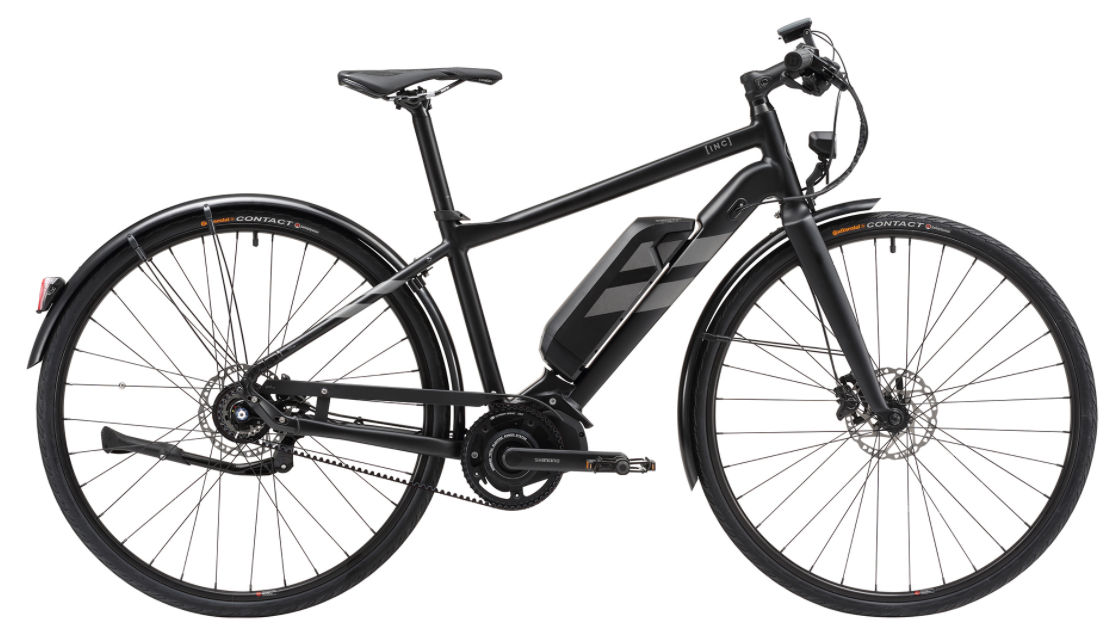

2017 Avanti Inc geometry
Full frame geometry for the 2017 Avanti Inc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 558 | 410 | 74 | 71 | 130 | 570 | 380 | 679 | 70 | 630 | 440 | 1065 | 48 | 66 |
| M | 572 | 421 | 74 | 71 | 145 | 585 | 425 | 713 | 70 | 647 | 440 | 1081 | 48 | 66 |
| L | 596 | 424 | 73.5 | 71 | 170 | 600 | 475 | 750 | 70 | 657 | 440 | 1092 | 48 | 66 |
| XL | 619 | 426 | 73 | 71 | 195 | 615 | 530 | 791 | 70 | 668 | 440 | 1103 | 48 | 66 |
All measurements in millimetres unless marked (°) for angles.
