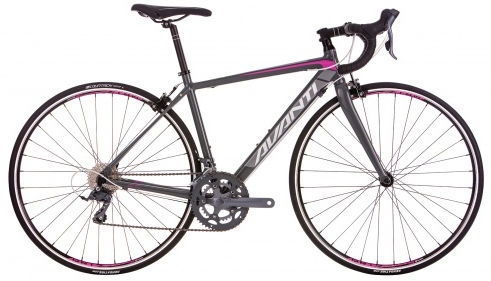

2015 Avanti Giro Womens geometry
Full frame geometry for the 2015 Avanti Giro Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 508 | 367 | 75 | 71 | 110 | 505 | 505 | 689 | 70 | 574 | 408 | 972 | 50 | 64 |
| S | 521 | 374 | 74.5 | 71.3 | 120 | 520 | 520 | 715 | 70 | 583 | 408 | 981 | 50 | 58 |
| SM | 535 | 380 | 74 | 72 | 135 | 535 | 535 | 742 | 70 | 588 | 408 | 986 | 50 | 58 |
All measurements in millimetres unless marked (°) for angles.
