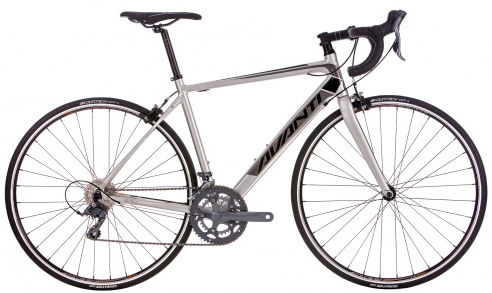

2017 Avanti Giro MKV geometry
Full frame geometry for the 2017 Avanti Giro MKV, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 514 | 383 | 75.5 | 72 | 110 | 518 | 450 | 712 | 73 | 583 | 412 | 984 | 50 | 58 |
| SM | 533 | 383 | 74 | 72 | 130 | 537 | 480 | 728 | 73 | 589 | 412 | 990 | 50 | 58 |
| M | 551 | 384 | 73.5 | 72 | 150 | 548 | 500 | 745 | 72 | 596 | 415 | 1001 | 50 | 58 |
| ML | 576 | 391 | 73.3 | 72.5 | 175 | 565 | 520 | 765 | 72 | 607 | 415 | 1011 | 50 | 55 |
| L | 599 | 397 | 73 | 72.5 | 200 | 580 | 540 | 785 | 70 | 620 | 418 | 1028 | 50 | 55 |
All measurements in millimetres unless marked (°) for angles.
