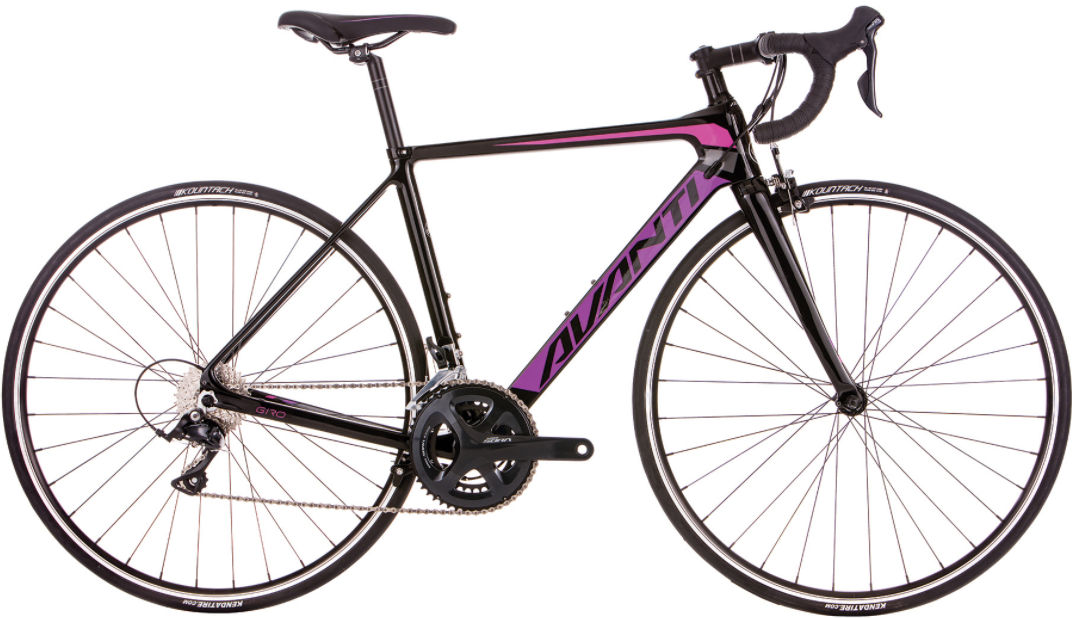

2017 Avanti Giro C Womens geometry
Full frame geometry for the 2017 Avanti Giro C Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 515 | 367 | 75 | 71 | 120 | 505 | 425 | 705 | 70 | 577 | 405 | 972 | 50 | 64 |
| S | 526 | 374 | 74.5 | 73.1 | 130 | 520 | 450 | 722 | 70 | 586 | 405 | 980 | 50 | 62 |
| SM | 547 | 378 | 74 | 72 | 150 | 535 | 475 | 743 | 70 | 589 | 405 | 984 | 50 | 58 |
| M | 564 | 383 | 73.5 | 72 | 170 | 550 | 500 | 765 | 68 | 600 | 405 | 995 | 50 | 58 |
All measurements in millimetres unless marked (°) for angles.
