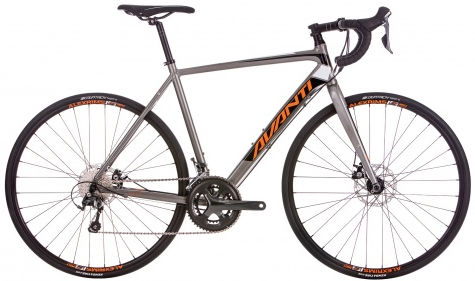

2015 Avanti Giro AR geometry
Full frame geometry for the 2015 Avanti Giro AR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 532 | 382 | 75.5 | 71.5 | 110 | 520 | 734 | 60 | 591 | 435 | 1019 | 45 | 66 |
| SM | 553 | 376 | 73.5 | 72 | 130 | 540 | 767 | 60 | 587 | 435 | 1015 | 45 | 63 |
| M | 572 | 385 | 73 | 72 | 150 | 560 | 791 | 60 | 602 | 435 | 1030 | 45 | 63 |
| L | 591 | 399 | 73 | 72 | 170 | 580 | 809 | 60 | 622 | 435 | 1050 | 45 | 63 |
All measurements in millimetres unless marked (°) for angles.
