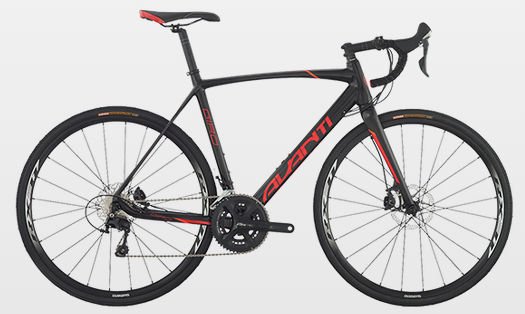

2015 Avanti Giro AR C geometry
Full frame geometry for the 2015 Avanti Giro AR C, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 518 | 383 | 75.5 | 71.5 | 110 | 520 | 490 | 753 | 55 | 589 | 425 | 1007 | 45 | 66 |
| 54 | 539 | 379 | 73.5 | 72 | 130 | 540 | 530 | 782 | 55 | 587 | 425 | 1005 | 45 | 63 |
| 56 | 559 | 389 | 73 | 72 | 150 | 560 | 550 | 801 | 55 | 602 | 425 | 1021 | 45 | 63 |
| 58 | 578 | 403 | 73 | 72 | 170 | 580 | 570 | 819 | 55 | 622 | 425 | 1041 | 45 | 63 |
| 60 | 610 | 414 | 73 | 72 | 190 | 600 | 580 | 827 | 60 | 642 | 435 | 1070 | 45 | 63 |
All measurements in millimetres unless marked (°) for angles.
