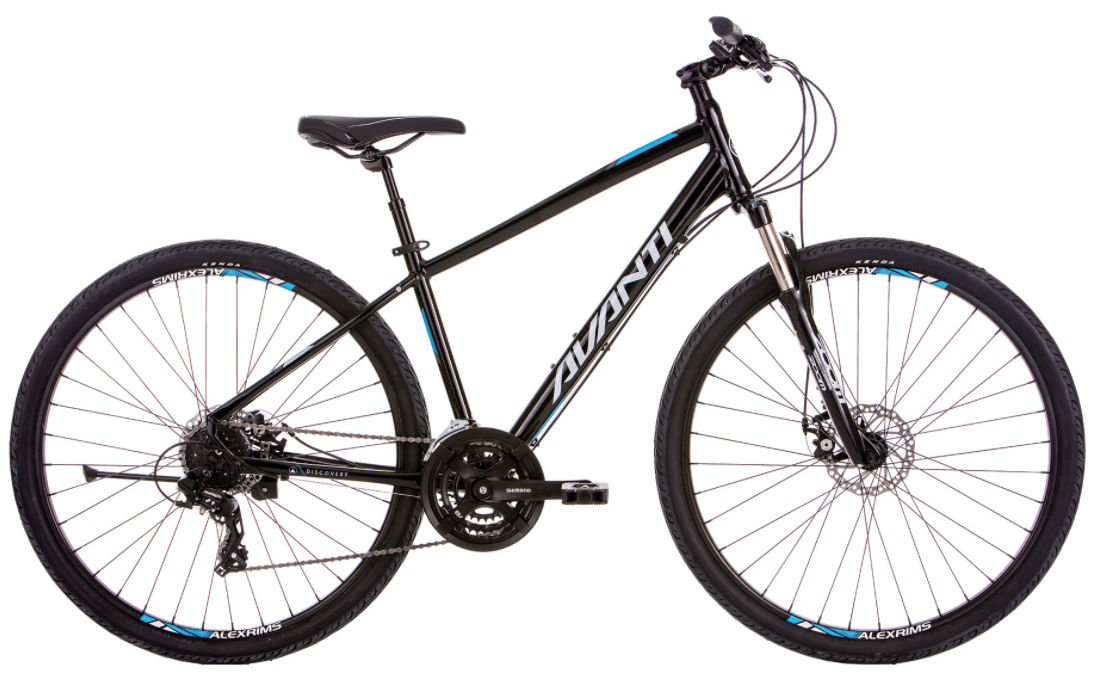

2017 Avanti Discovery geometry
Full frame geometry for the 2017 Avanti Discovery, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 625 | 371 | 74 | 70 | 130 | 550 | 350 | 664 | 65 | 622 | 445 | 1059 | 43 | 78 |
| M | 644 | 385 | 74 | 70 | 150 | 570 | 425 | 731 | 65 | 643 | 445 | 1080 | 43 | 78 |
| L | 658 | 395 | 73.5 | 70 | 165 | 590 | 480 | 766 | 65 | 658 | 445 | 1095 | 43 | 78 |
| XL | 672 | 406 | 73.5 | 70 | 180 | 605 | 535 | 803 | 65 | 674 | 445 | 1111 | 43 | 78 |
All measurements in millimetres unless marked (°) for angles.
