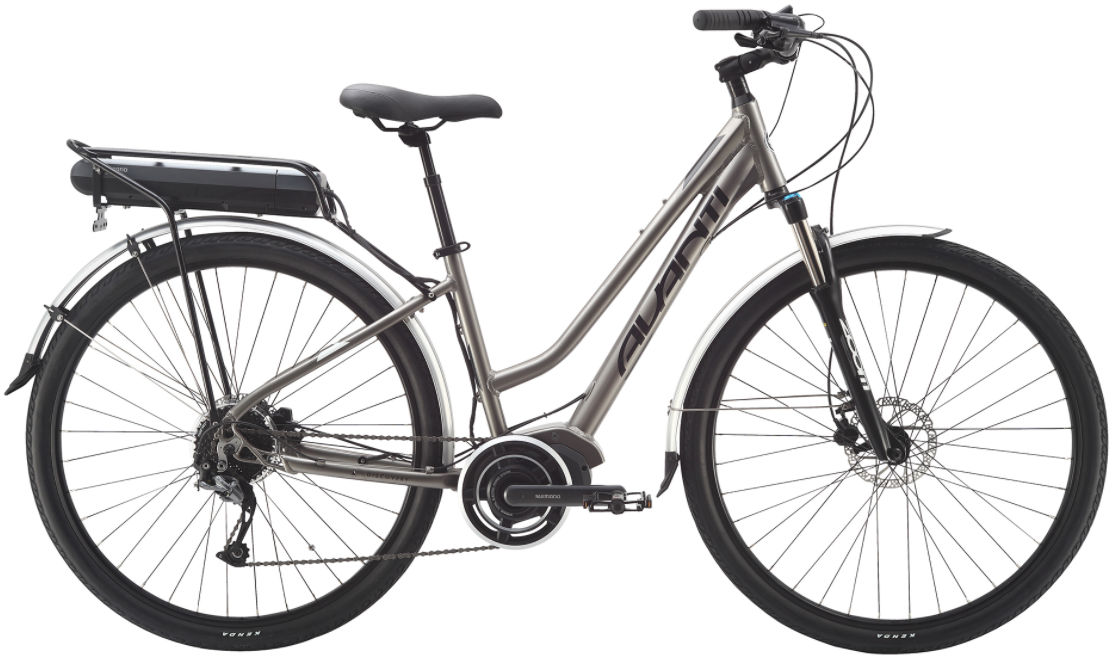

2017 Avanti Discovery Low Electric geometry
Full frame geometry for the 2017 Avanti Discovery Low Electric, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 651 | 388 | 74 | 70 | 150 | 575 | 425 | 610 | 70 | 643 | 480 | 1114 | 38 | 94 |
| ML | 671 | 388 | 74 | 70 | 170 | 580 | 480 | 614 | 70 | 651 | 480 | 1122 | 38 | 94 |
All measurements in millimetres unless marked (°) for angles.
