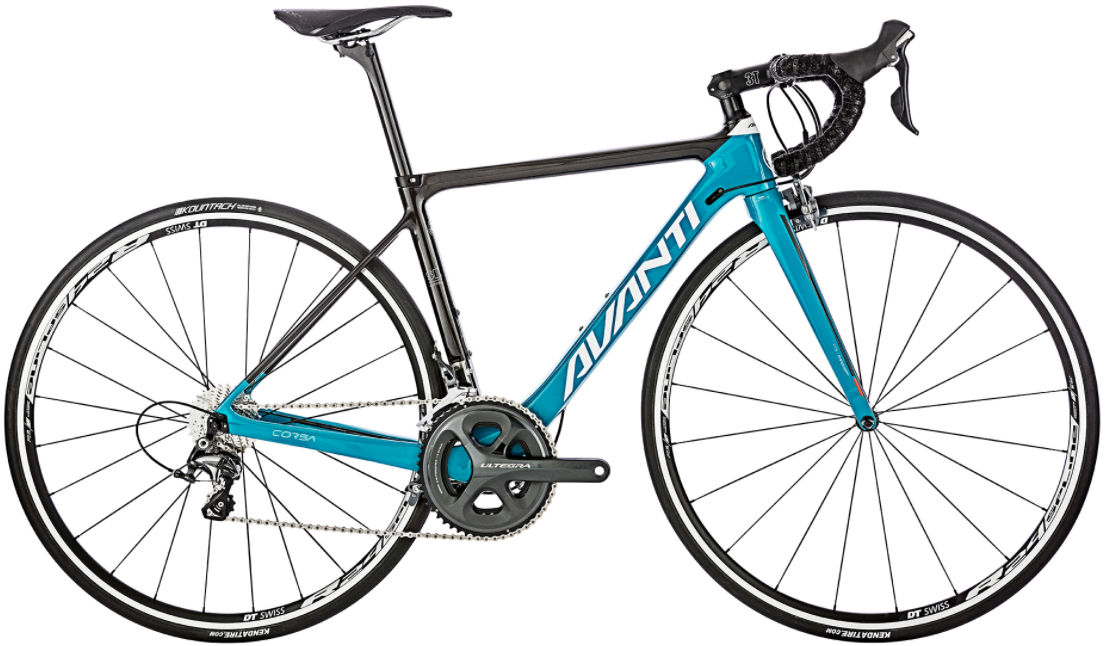

2014 Avanti Corsa SL Womens geometry
Full frame geometry for the 2014 Avanti Corsa SL Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 507 | 370 | 75 | 71.5 | 110 | 490 | 455 | 729 | 70 | 572 | 405 | 967 | 50 | 60 |
| S | 511 | 379 | 74.5 | 72.5 | 110 | 520 | 455 | 731 | 70 | 569 | 405 | 964 | 45 | 60 |
| SM | 527 | 384 | 74 | 72.5 | 125 | 535 | 470 | 744 | 70 | 580 | 405 | 975 | 45 | 60 |
All measurements in millimetres unless marked (°) for angles.
