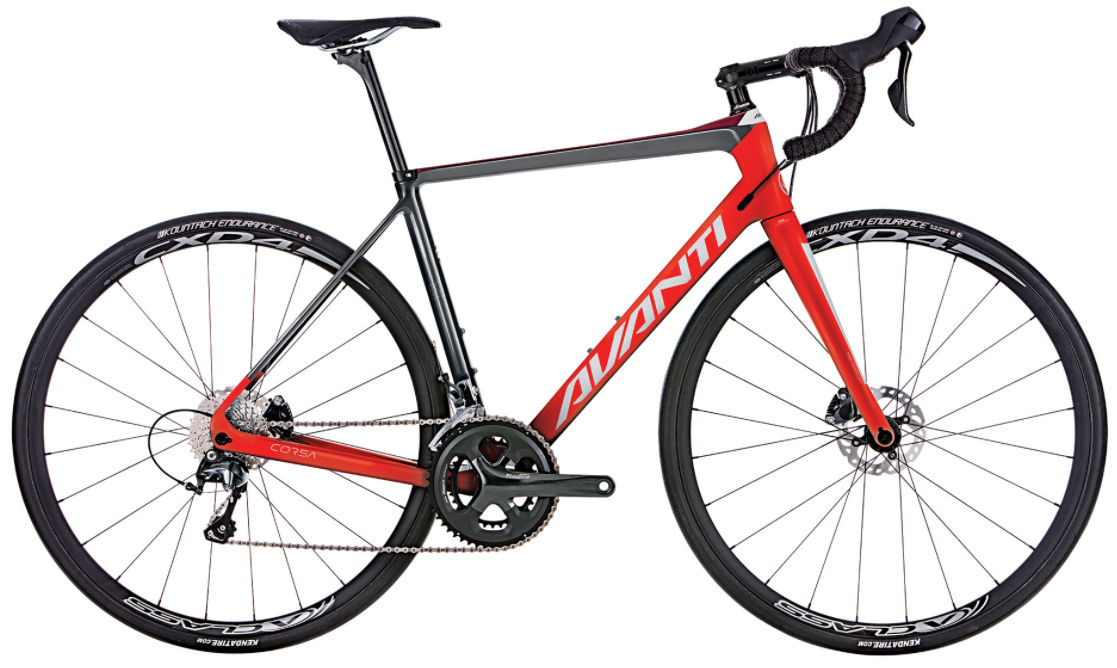

2017 Avanti Corsa SL Disc geometry
Full frame geometry for the 2017 Avanti Corsa SL Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 511 | 379 | 74.5 | 72.5 | 110 | 520 | 455 | 731 | 70 | 569 | 405 | 964 | 45 | 60 |
| SM | 527 | 384 | 74 | 72.5 | 125 | 535 | 470 | 744 | 70 | 580 | 405 | 975 | 45 | 60 |
| M | 545 | 383 | 73 | 73 | 145 | 550 | 485 | 760 | 70 | 580 | 405 | 975 | 45 | 57 |
| ML | 568 | 391 | 73 | 73.5 | 165 | 565 | 505 | 778 | 70 | 590 | 405 | 985 | 45 | 54 |
| L | 592 | 393 | 72.5 | 73.5 | 190 | 580 | 525 | 797 | 70 | 600 | 405 | 994 | 45 | 54 |
| XL | 612 | 396 | 72 | 74 | 210 | 595 | 550 | 819 | 70 | 602 | 405 | 997 | 45 | 51 |
All measurements in millimetres unless marked (°) for angles.
