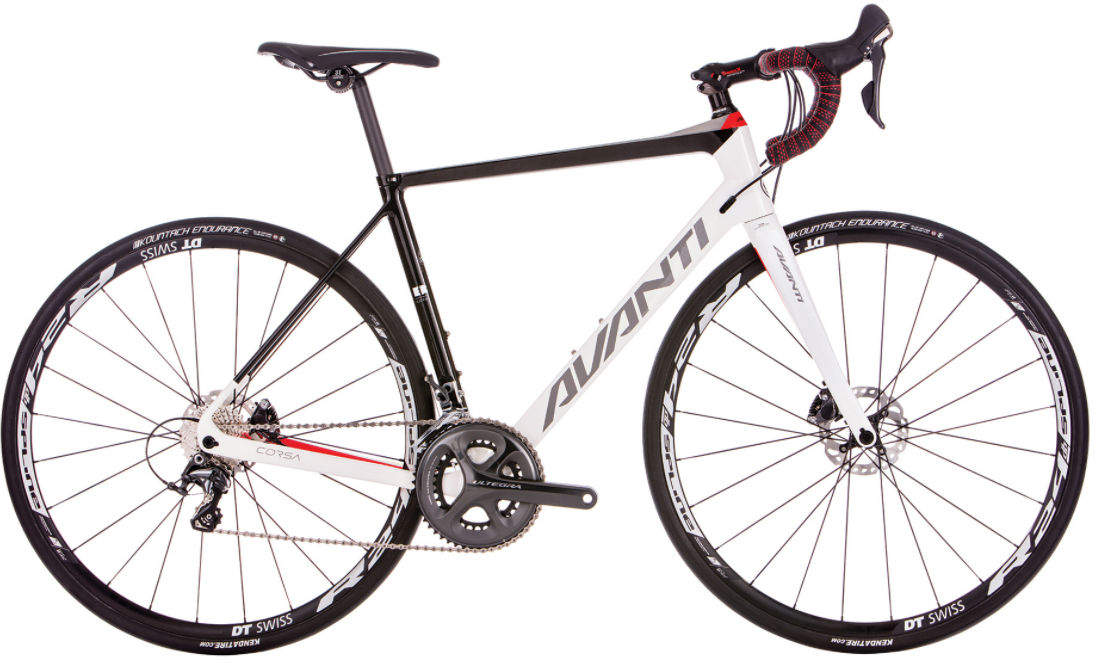

2017 Avanti Corsa ER geometry
Full frame geometry for the 2017 Avanti Corsa ER, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 539 | 363 | 75.5 | 72 | 125 | 520 | 476 | 747 | 73 | 412 | 987 | 50 | 58 |
| SM | 549 | 376 | 74 | 72 | 145 | 535 | 448 | 755 | 73 | 412 | 992 | 50 | 58 |
| M | 563 | 381 | 73.5 | 72 | 165 | 550 | 497 | 780 | 72 | 415 | 1002 | 50 | 58 |
| ML | 589 | 388 | 73.3 | 72.5 | 190 | 565 | 515 | 790 | 72 | 415 | 1012 | 50 | 55 |
| L | 611 | 393 | 73 | 72.5 | 215 | 580 | 526 | 806 | 70 | 418 | 1028 | 50 | 55 |
| XL | 632 | 401 | 72.5 | 73 | 235 | 600 | 541 | 820 | 70 | 418 | 1037 | 50 | 52 |
All measurements in millimetres unless marked (°) for angles.
