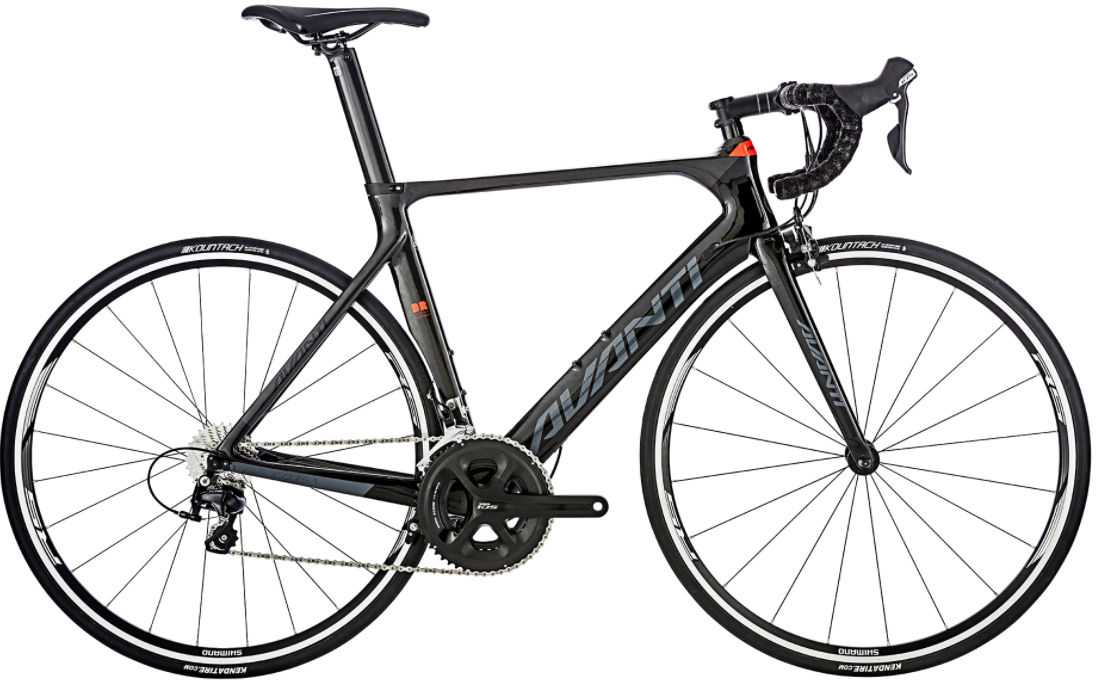

2013 Avanti Corsa DR geometry
Full frame geometry for the 2013 Avanti Corsa DR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 513 | 378 | 74.5 | 72.5 | 110 | 520 | 480 | 744 | 70 | 569 | 405 | 963 | 45 | 60 |
| SM | 525 | 385 | 74 | 72.5 | 123 | 535 | 495 | 758 | 70 | 579 | 405 | 974 | 45 | 60 |
| M | 544 | 384 | 73 | 73 | 143 | 550 | 510 | 775 | 68 | 580 | 405 | 975 | 45 | 57 |
| ML | 564 | 393 | 73 | 73.5 | 163 | 565 | 530 | 795 | 68 | 590 | 405 | 986 | 45 | 54 |
| L | 588 | 395 | 72.5 | 73.5 | 188 | 580 | 550 | 814 | 68 | 600 | 407 | 997 | 45 | 54 |
All measurements in millimetres unless marked (°) for angles.
