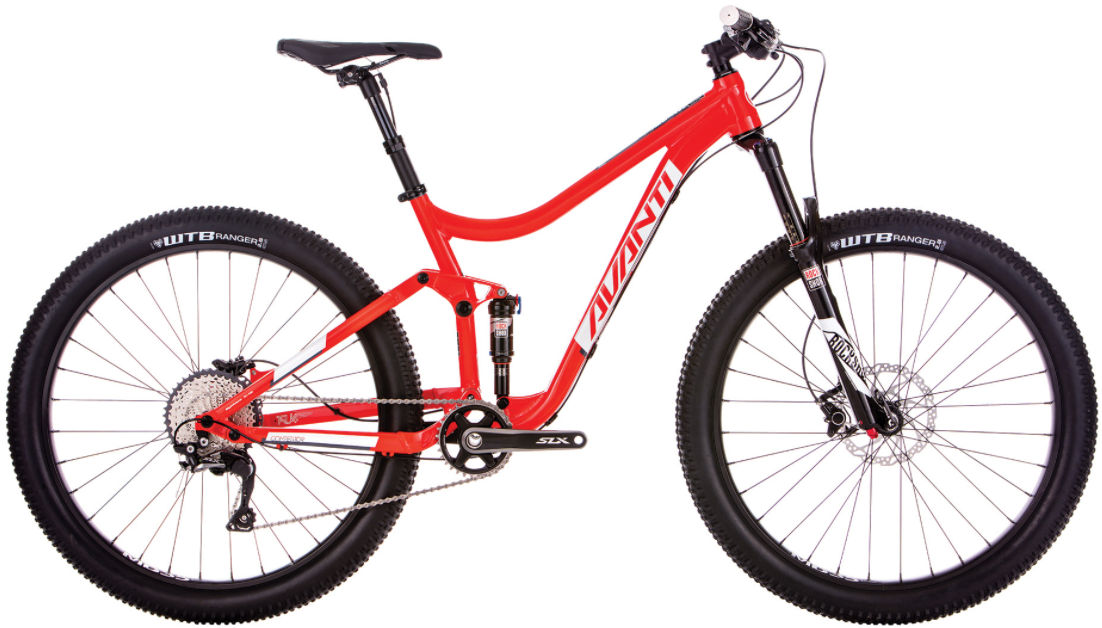

2017 Avanti Competitor S Plus geometry
Full frame geometry for the 2017 Avanti Competitor S Plus, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 600 | 428 | 74 | 68.5 | 100 | 600 | 430 | 716 | 26 | 707 | 450 | 1145 | 51 |
| S | 600 | 403 | 74 | 68.5 | 100 | 575 | 390 | 697 | 26 | 682 | 450 | 1120 | 51 |
| L | 610 | 450 | 74 | 68.5 | 110 | 625 | 480 | 750 | 26 | 733 | 450 | 1171 | 51 |
| XL | 619 | 462 | 74 | 68.5 | 120 | 640 | 530 | 784 | 26 | 749 | 450 | 1187 | 51 |
All measurements in millimetres unless marked (°) for angles.
