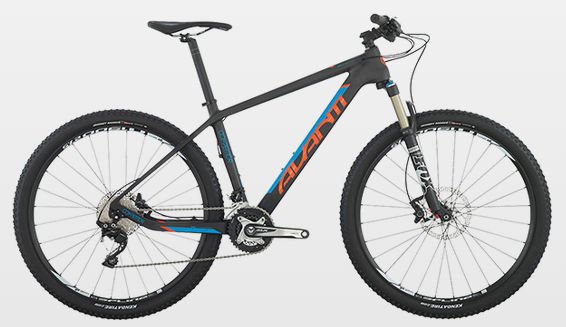

2015 Avanti Competitor C MKI geometry
Full frame geometry for the 2015 Avanti Competitor C MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 585 | 401 | 73 | 70.5 | 110 | 580 | 440 | 758 | 35 | 639 | 438 | 1071 | 44 |
| L | 602 | 416 | 73 | 71 | 125 | 600 | 490 | 792 | 35 | 655 | 438 | 1088 | 44 |
| XL | 616 | 432 | 73 | 71 | 140 | 620 | 540 | 827 | 35 | 674 | 438 | 1108 | 44 |
All measurements in millimetres unless marked (°) for angles.
