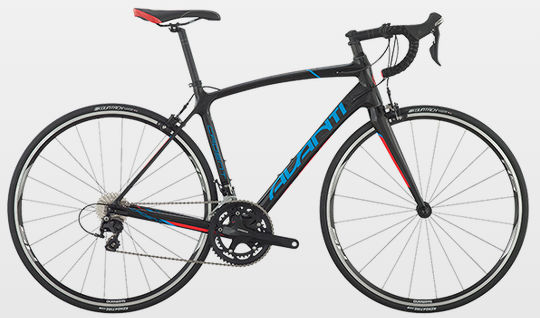

2012 Avanti Cadent C geometry
Full frame geometry for the 2012 Avanti Cadent C, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 528 | 381 | 75.5 | 72 | 125 | 518 | 450 | 720 | 73 | 586 | 412 | 987 | 50 | 58 |
| 53.5 | 547 | 380 | 74 | 72 | 145 | 537 | 480 | 742 | 73 | 591 | 412 | 992 | 50 | 58 |
| 55 | 565 | 381 | 73.5 | 72 | 165 | 548 | 500 | 760 | 72 | 598 | 415 | 1002 | 50 | 58 |
| 56.5 | 591 | 388 | 73.3 | 72.5 | 190 | 565 | 520 | 780 | 72 | 607 | 415 | 1012 | 50 | 55 |
| 58 | 612 | 393 | 73 | 72.5 | 215 | 580 | 540 | 801 | 70 | 620 | 418 | 1028 | 50 | 55 |
| 60 | 633 | 400 | 72.5 | 73 | 235 | 600 | 570 | 825 | 70 | 629 | 418 | 1037 | 50 | 52 |
All measurements in millimetres unless marked (°) for angles.
