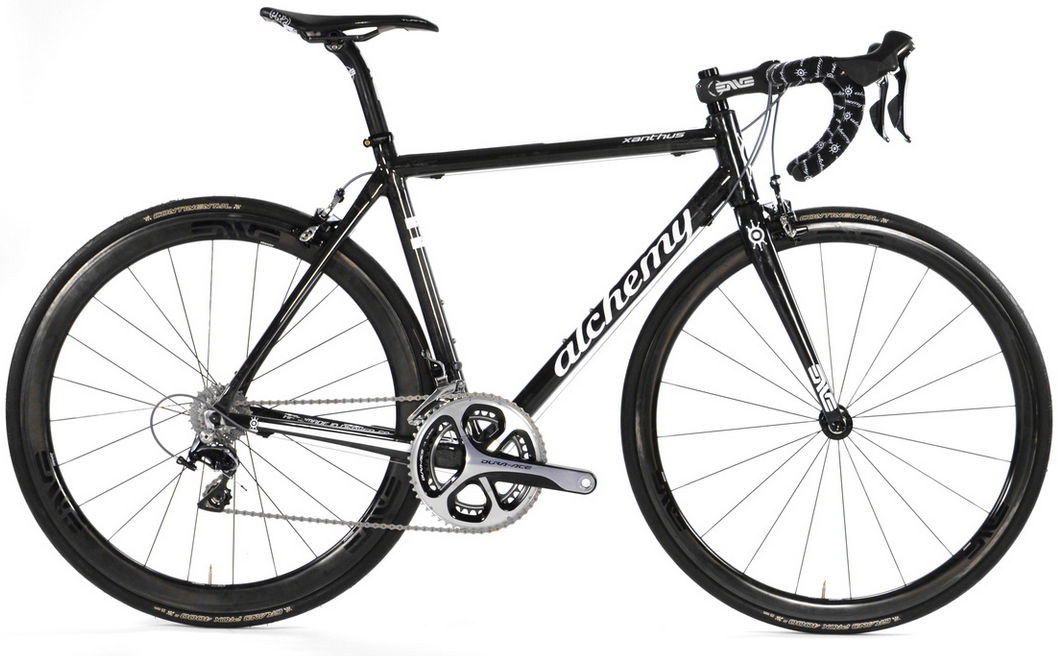

2015 Alchemy Stock Road geometry
Full frame geometry for the 2015 Alchemy Stock Road, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 52 | 522 | 365 | 73.5 | 72.5 | 120 | 520 | 70 | 408 | 45 |
| 54 | 543 | 374 | 73 | 73 | 140 | 540 | 70 | 408 | 43 |
| 56 | 563 | 388 | 73 | 73 | 160 | 560 | 70 | 408 | 43 |
| 58 | 600 | 397 | 73 | 73.5 | 180 | 580 | 70 | 408 | 43 |
All measurements in millimetres unless marked (°) for angles.
