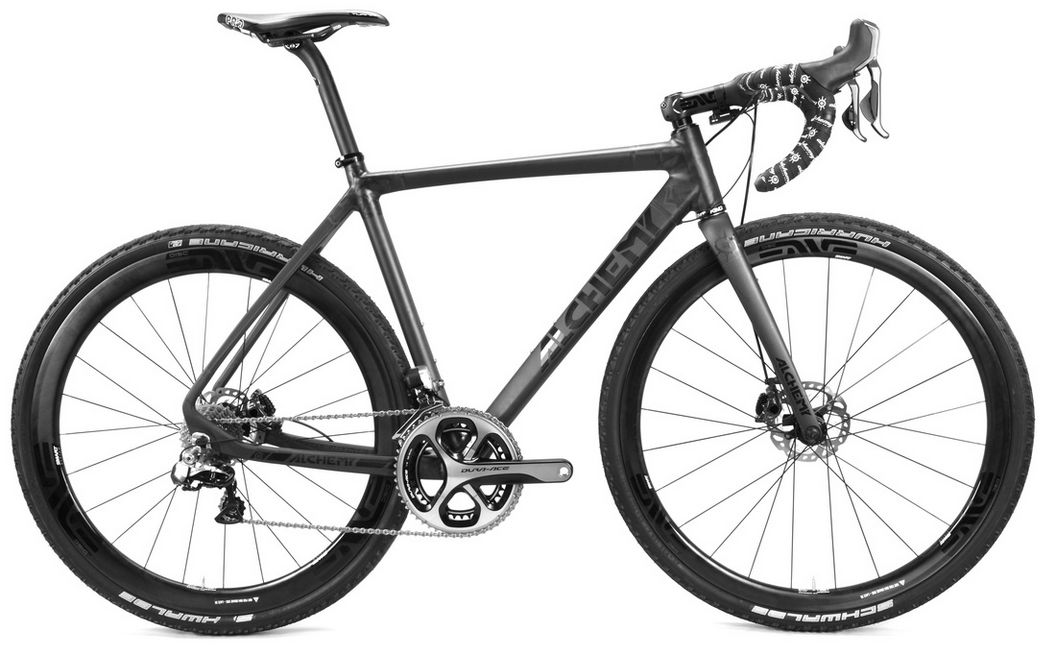

2015 Alchemy Stock Gravel geometry
Full frame geometry for the 2015 Alchemy Stock Gravel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 52 | 530 | 362 | 73.5 | 72.5 | 100 | 520 | 70 | 420 | 45 |
| 54 | 551 | 372 | 73 | 73 | 120 | 540 | 70 | 420 | 45 |
| 56 | 570 | 386 | 73 | 73 | 140 | 560 | 70 | 420 | 45 |
| 58 | 589 | 400 | 73 | 73 | 160 | 580 | 70 | 420 | 45 |
All measurements in millimetres unless marked (°) for angles.
