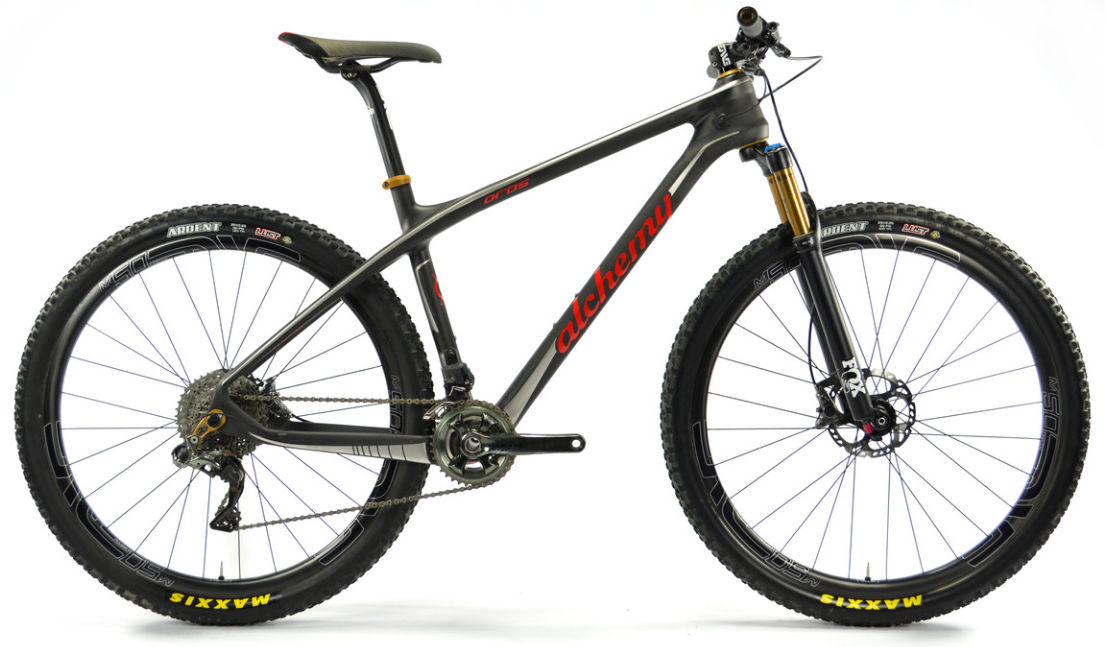

2016 Alchemy Oros Stock geometry
Full frame geometry for the 2016 Alchemy Oros Stock, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 598 | 394 | 73.5 | 70.5 | 100 | 575 | 395 | 40 | 430 | 45 |
| M | 609 | 418 | 73.5 | 70.5 | 100 | 600 | 435 | 40 | 438 | 45 |
| L | 629 | 437 | 73.5 | 71 | 120 | 624 | 470 | 40 | 438 | 45 |
| XL | 639 | 459 | 73.5 | 71 | 130 | 650 | 490 | 40 | 438 | 45 |
All measurements in millimetres unless marked (°) for angles.
