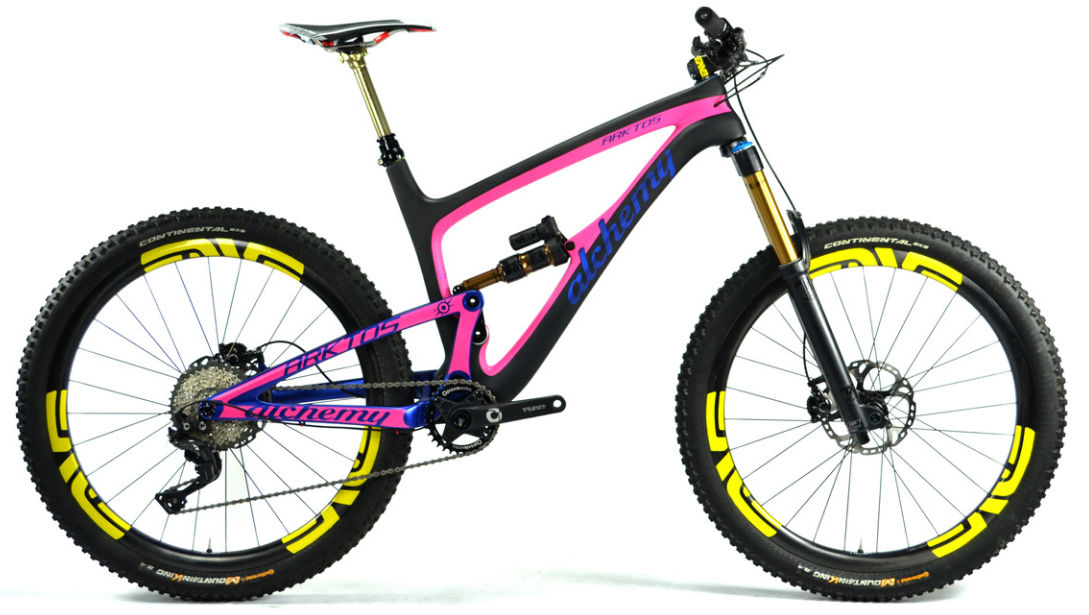

2016 Alchemy Arktos Stock geometry
Full frame geometry for the 2016 Alchemy Arktos Stock, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 589 | 401 | 73.5 | 66 | 100 | 585 | 420 | 10 | 430 |
| M | 599 | 415 | 73.5 | 66 | 110 | 600 | 455 | 10 | 438 |
| L | 604 | 431 | 73.5 | 66 | 115 | 615 | 483 | 10 | 438 |
| XL | 614 | 448 | 73.5 | 66 | 130 | 635 | 518 | 10 | 438 |
All measurements in millimetres unless marked (°) for angles.
