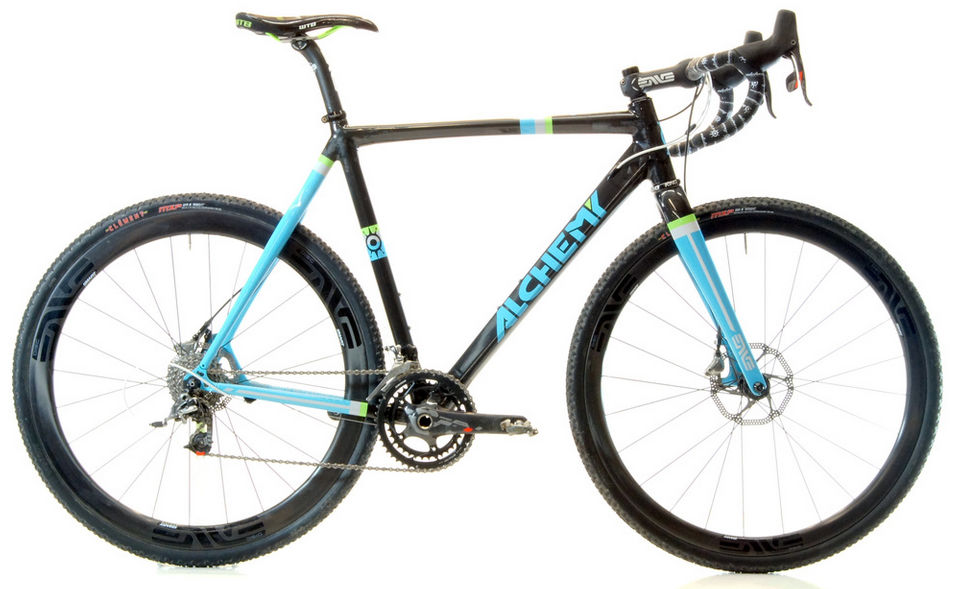

2015 Alchemy Stock Cross geometry
Full frame geometry for the 2015 Alchemy Stock Cross, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 52 | 551 | 356 | 73.5 | 72 | 120 | 520 | 91 | 425 | 47 |
| 54 | 565 | 367 | 73 | 72 | 135 | 540 | 91 | 425 | 47 |
| 56 | 579 | 383 | 73 | 72 | 150 | 560 | 91 | 425 | 47 |
| 58 | 598 | 397 | 73 | 72 | 170 | 580 | 91 | 425 | 47 |
All measurements in millimetres unless marked (°) for angles.
