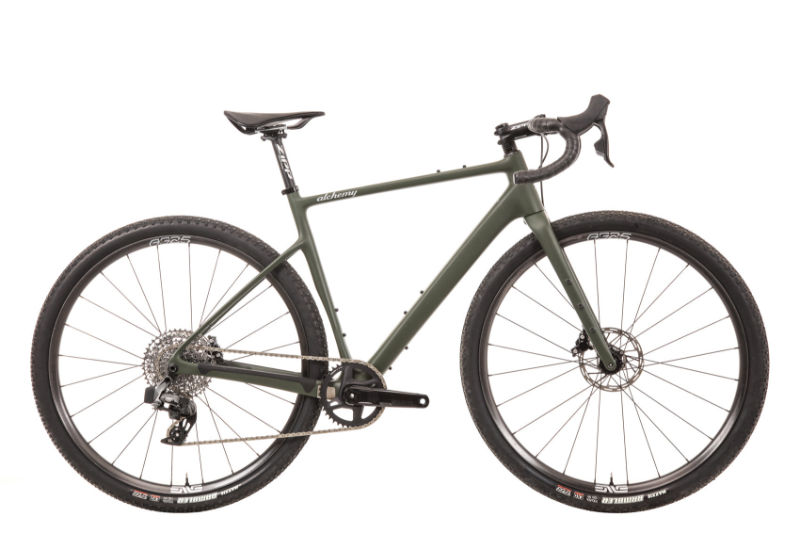

2026 Alchemy Lycos geometry
Full frame geometry for the 2026 Alchemy Lycos, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 555 | 371 | 73.5 | 70.3 | 135 | 538 | 500 | 775 | 72.5 | 602 | 430 | 1022 |
| M | 570 | 387 | 73.5 | 70.5 | 150 | 558 | 520 | 792 | 72.5 | 621 | 430 | 1040 |
| L | 592 | 398 | 73.5 | 71.3 | 170 | 575 | 545 | 815 | 72.5 | 631 | 430 | 1051 |
| XL | 607 | 403 | 73.5 | 71.5 | 185 | 584 | 560 | 830 | 72.5 | 639 | 430 | 1059 |
| XXL | 622 | 420 | 73.5 | 71.5 | 200 | 605 | 570 | 842 | 72.5 | 660 | 430 | 1080 |
All measurements in millimetres unless marked (°) for angles.
