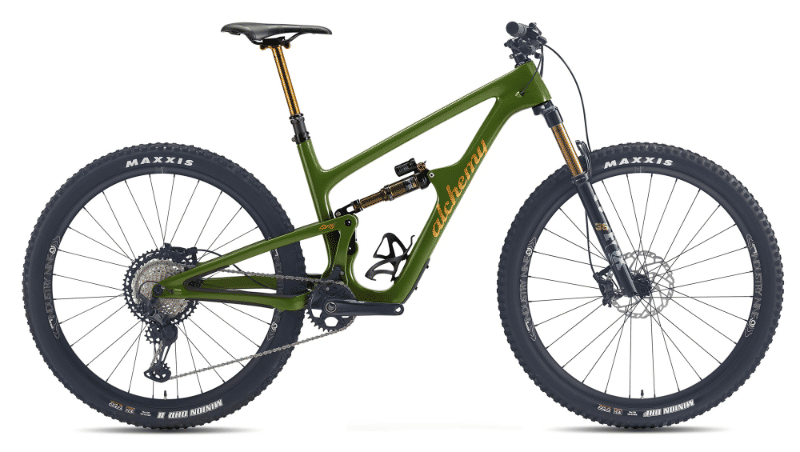

2026 Alchemy Arktos 140 geometry
Full frame geometry for the 2026 Alchemy Arktos 140, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 613.3 | 460 | 75.8 | 64.8 | 100 | 600 | 410 | 727 | 32 | 777 | 437 | 1216 |
| L | 622 | 483 | 75.8 | 64.8 | 110 | 625 | 445 | 747 | 32 | 803 | 437 | 1242 |
| XL | 630.1 | 508.5 | 75.8 | 64.8 | 120 | 652 | 490 | 757 | 32 | 833 | 437 | 1271.5 |
All measurements in millimetres unless marked (°) for angles.
