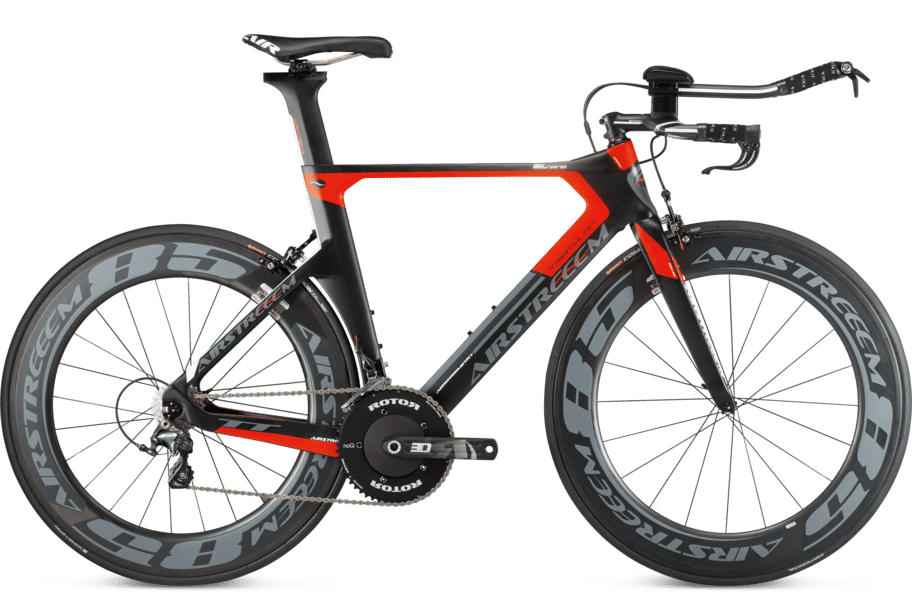

2018 Airstreeem TT1 geometry
Full frame geometry for the 2018 Airstreeem TT1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XSS | 475 | 390 | 77 | 72.5 | 113 | 501 | 485 | 405 | 963 |
| SM | 490 | 406 | 77 | 72.5 | 127 | 520 | 505 | 405 | 983 |
| ML | 505 | 422 | 77 | 72.5 | 143 | 539 | 525 | 405 | 1003 |
| L/XL | 520 | 437 | 77 | 72.5 | 158 | 557 | 545 | 405 | 1022 |
All measurements in millimetres unless marked (°) for angles.
