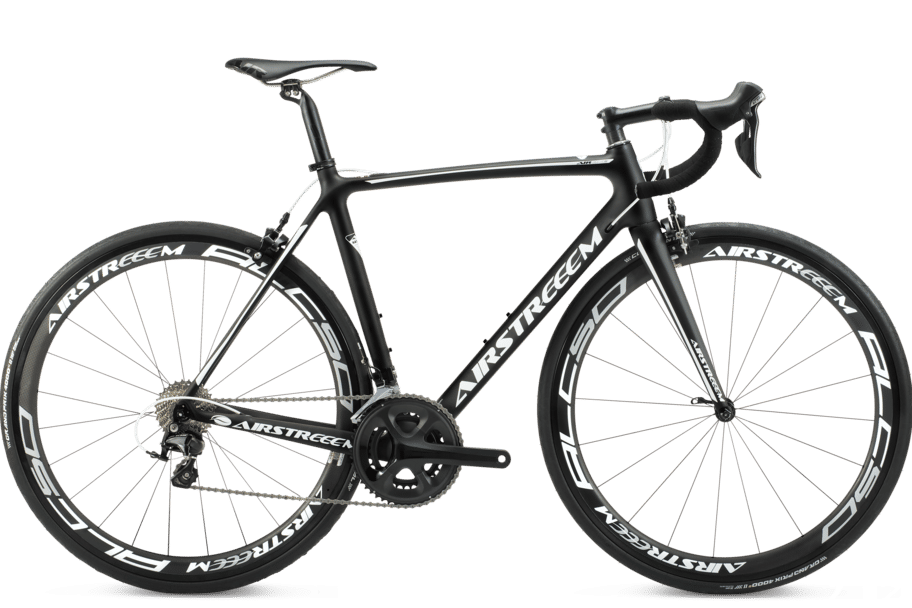

2018 Airstreeem Air One geometry
Full frame geometry for the 2018 Airstreeem Air One, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 514 | 372 | 75 | 71.5 | 115 | 510 | 470 | 406 | 966 |
| S | 526 | 379 | 74.5 | 72 | 125 | 525 | 510 | 406 | 972 |
| M | 546 | 383 | 74 | 72.5 | 145 | 539 | 540 | 406 | 978 |
| L | 567 | 397 | 73.5 | 73 | 165 | 565 | 570 | 406 | 994 |
| XL | 591 | 399 | 73 | 73 | 190 | 580 | 600 | 406 | 1005 |
All measurements in millimetres unless marked (°) for angles.
