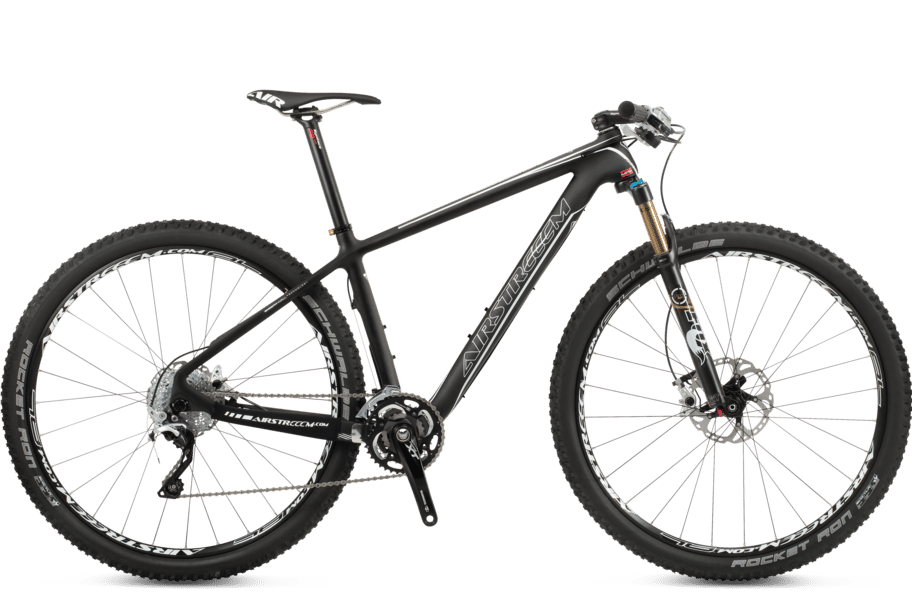

2018 Airstreeem 29 geometry
Full frame geometry for the 2018 Airstreeem 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| S/17 | 601 | 419 | 73 | 70 | 100 | 595 | 432 | 445 |
| M/19 | 605 | 433 | 73 | 70 | 105 | 610 | 483 | 445 |
| L/21 | 610 | 452 | 73 | 70 | 110 | 630 | 530 | 445 |
All measurements in millimetres unless marked (°) for angles.
