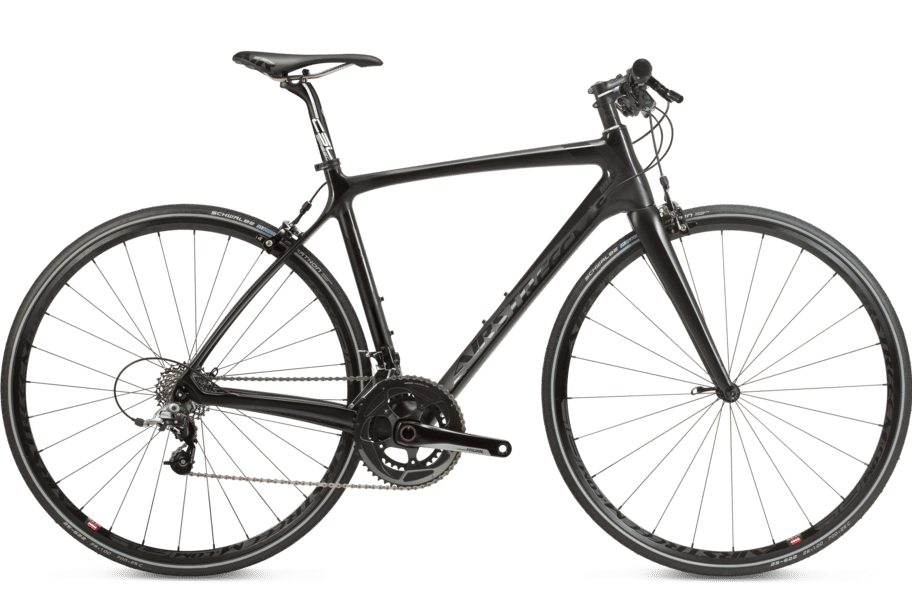

2018 Airstreeem RR Storm Trekking geometry
Full frame geometry for the 2018 Airstreeem RR Storm Trekking, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 520 | 359 | 74.1 | 70.8 | 123 | 513 | 480 | 412 | 973 |
| S | 545 | 368 | 73.7 | 71.1 | 148 | 533 | 510 | 412 | 987 |
| M | 569 | 383 | 73.3 | 71.4 | 174 | 554 | 540 | 412 | 1003 |
| L | 593 | 392 | 72.9 | 71.7 | 198 | 574 | 570 | 412 | 1016 |
| XL | 617 | 401 | 72.5 | 72 | 224 | 595 | 600 | 412 | 1031 |
All measurements in millimetres unless marked (°) for angles.
