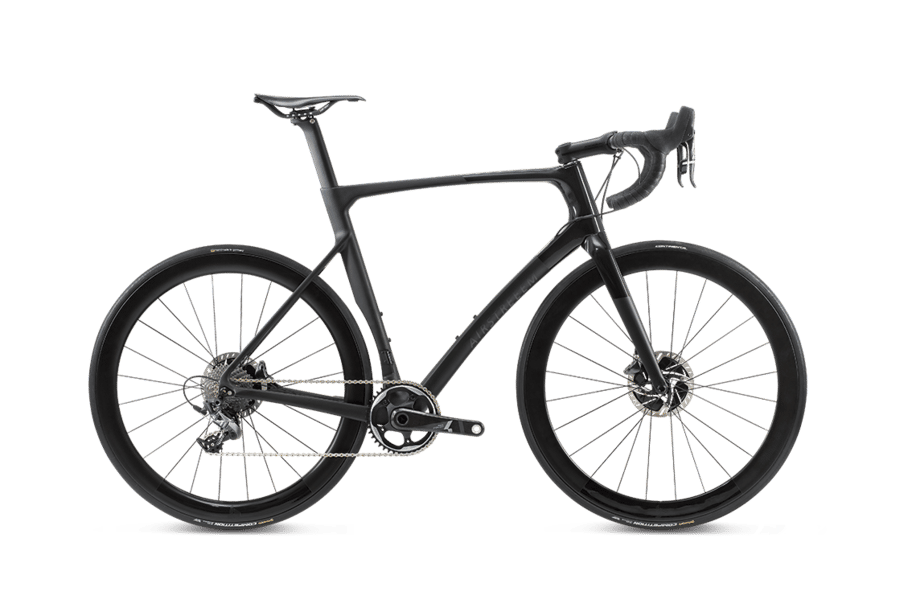

2019 Airstreeem Graveller geometry
Full frame geometry for the 2019 Airstreeem Graveller, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 520 | 376 | 74.5 | 71 | 110 | 520 | 490 | 415 | 986 |
| S | 539 | 380 | 74 | 72.5 | 124 | 535 | 510 | 415 | 983 |
| M | 558 | 384 | 73.5 | 72.5 | 144 | 550 | 530 | 415 | 993 |
| L | 578 | 394 | 73.5 | 72.7 | 164 | 565 | 560 | 415 | 1007 |
| XL | 598 | 397 | 73 | 73 | 184 | 580 | 580 | 415 | 1132 |
All measurements in millimetres unless marked (°) for angles.
