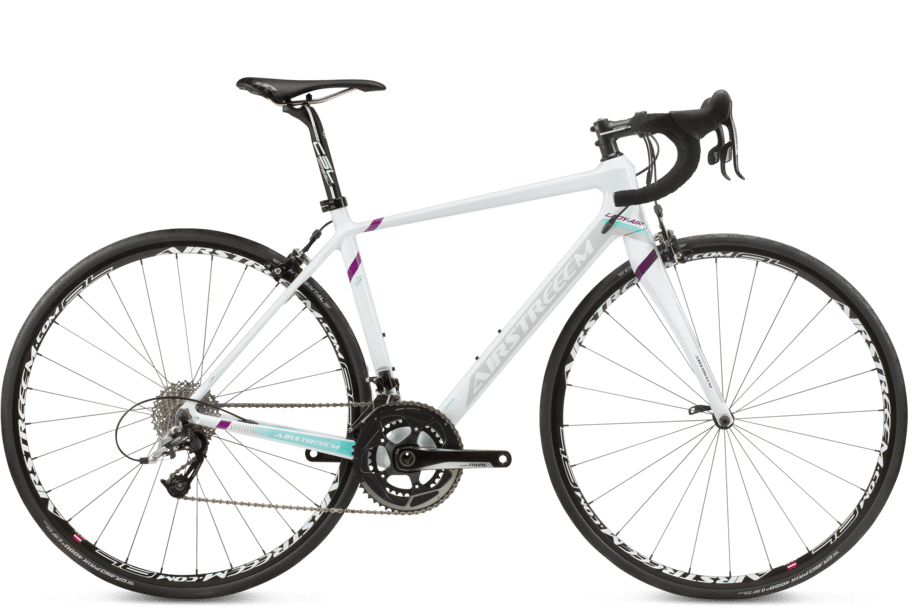

2018 Airstreeem Kalima geometry
Full frame geometry for the 2018 Airstreeem Kalima, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XXS | 525 | 364 | 74.5 | 71 | 118 | 509 | 440 | 410 | 972 |
| XS | 547 | 371 | 74 | 71.5 | 140 | 527 | 480 | 410 | 983 |
| S | 569 | 378 | 73.5 | 72 | 161 | 546 | 520 | 410 | 992 |
All measurements in millimetres unless marked (°) for angles.
